Typical Application Fields : Internet of Things (IoT)
High-concerned chemical : None
Compatible With : meshtastic meshcore lora
Accessory Type : LCD Screen
Brand Name : seeed studio
Origin : Mainland China
Description

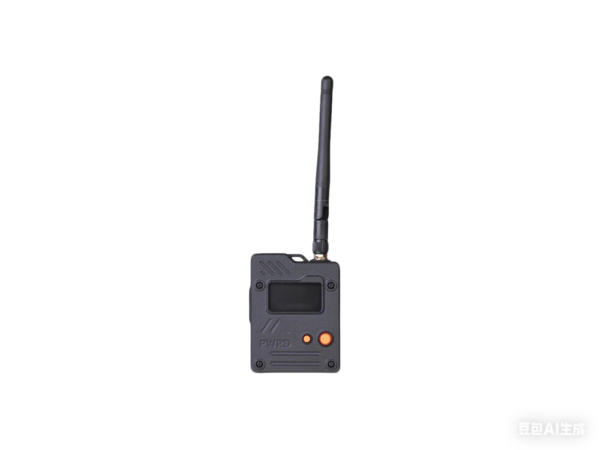

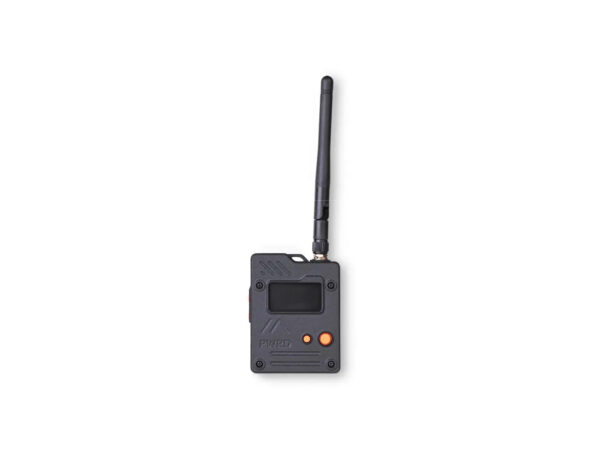

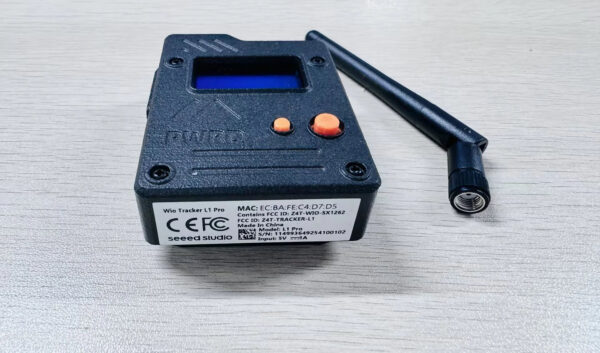

The Wio Tracker L1 Series is a low-power Meshtastic node designed for reliable LoRa mesh communication. It integrates a long-range LoRa radio (862–930 MHz), Nordic’s nRF52840 processor, and an L76K GPS module for efficient messaging and accurate location tracking within Meshtastic networks.The L1 Pro version is a fully integrated Meshtastic device featuring an OLED display, rechargeable battery, and durable 3D-printed enclosure. Ready to deploy out of the box, it enables quick setup of a Meshtastic node for off-grid communication and outdoor networking.
Note: L1 Pro comes with Meshtastic firmware by default. If you need to flash MeshCore firmware, please refer to the wiki for self flashing.https://wiki.seeedstudioget_started_with_other_mesh_firmware/
Feature

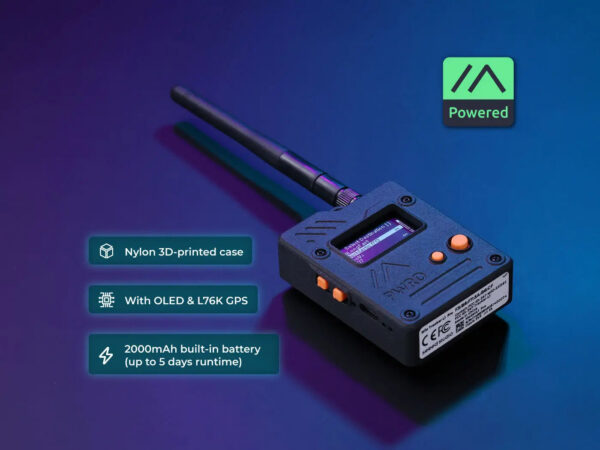

Ready-to-Use 3D-Printed Enclosure

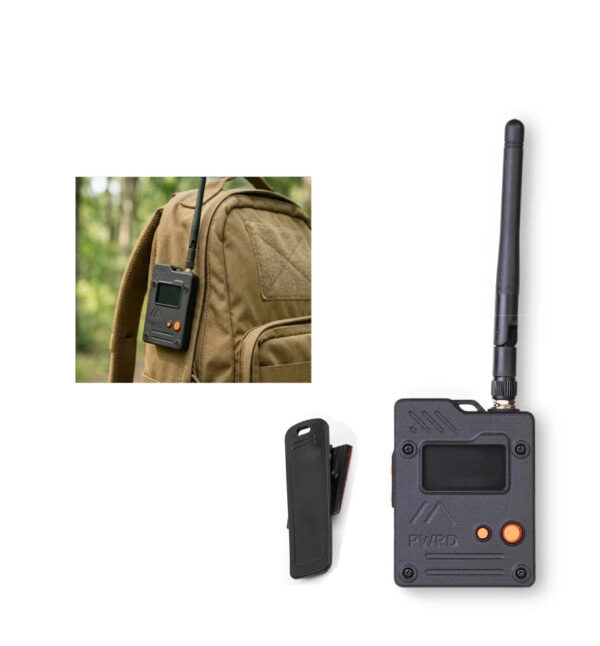

The L1 Pro comes with a rugged, lightweight 3D-printed enclosure designed for immediate use—no additional assembly needed. Whether handheld or clipped onto gear, it’s built for adventure in any environment.
Pre-flashed with Meshtastic firmware
Ready to use out of the box with pre-installed Meshtastic firmware for seamless setup.
Triple Power Supply Options

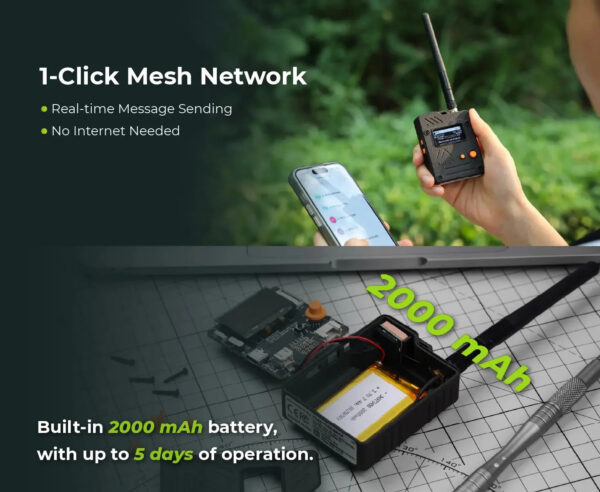

Equipped with a built-in 2000 mAh battery, Type-C fast charging, and solar input support, enabling flexible deployment in diverse environments—perfect for outdoor and mobile use.
High Expandability
Fully compatible with the Grove Ecosystem (The list ofsupported sensorsis provided below.), and includes PTH headers and an SWD debugging interface for custom hardware expansion and advanced development.
Specification
Processor
Nordic nRF52840ARM® Cortex®-M4 with FPU runs up to 64 MHz
On-chip Memory
1 MB flash and 256 kB RAM
Wireless
LoRa: Based onWio-SX1262, supports 862-930MHz
Bluetooth5.0
GPS
L76K(GPS,BeiDou,GLONASS,QZSS)
OLED Display
Size: 1.3 inch
Resolution: 128*64 pixels
Active Area(mm): L34.5*W23.0*H1.47
Power
Type-C:5v—1A
Solar energy interface(2.0mm 2p):5V—1A
Baterry interface(1.0mm 2p JST): 3.7v—1A
Certification
FCC, CE, RoHS

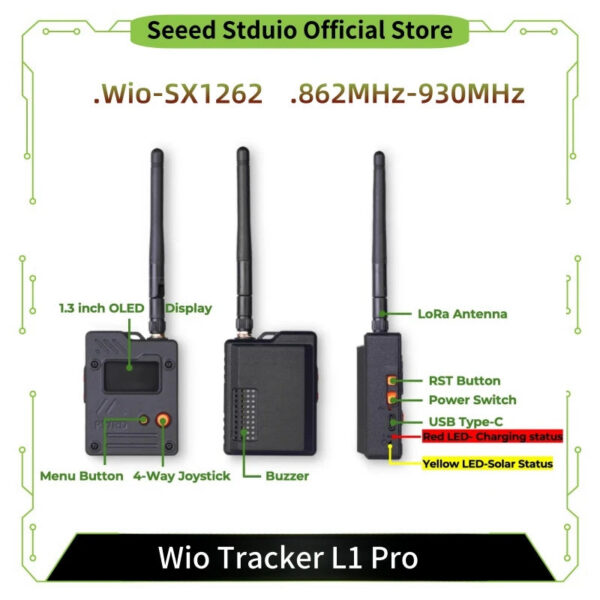

Hardware Overview
Diagram
Explore what our community has built!
Discover all the amazing projects from the Meshtastic Device Design Challenge — powered by Seeed and Hackster.io and Meshtastic.
See how community members around the world used Wio Tracker L1 Series to bring their creative ideas to life.
Application
Documents
(V1)Wio Tracker L1 Pro 3D – Shell Reference Document
(V2 New Four-way Joystick) Wio Tracker Ll Pro 3D-Shell Reference Document
WioTrackerL1CECertification
WioTrackerL1FCCCertification
Seeed Wio Tracker L1 Power Consumption Test and Battery Life Calculation
Part List
Wio Tracker L1
x1
Color
L1 pro with clip, L1 pro
