Video Capturer Card Box HDMI-Compatible 4K 60Hz 30Hz USB 3.0 1080P 60fps 30fps Grabber Live OBS Capturing Game Capture Recorder




Video Capture Card Box Features:
1. It can capture single HD HDTV video signal;

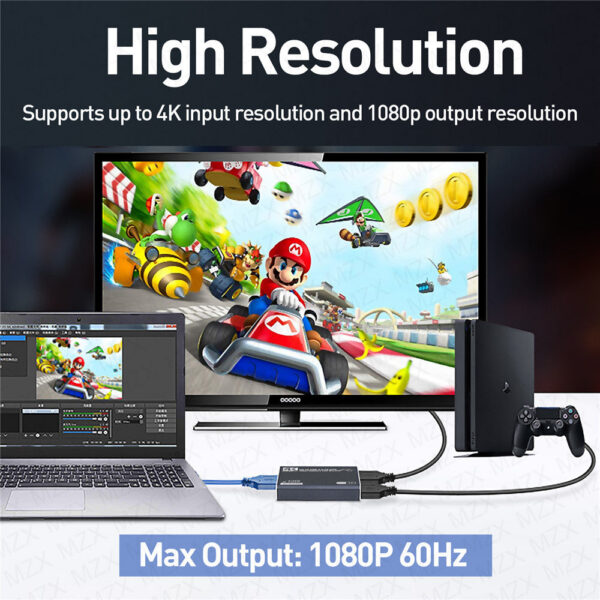

2. The recorded video signal(output) can reach 1080p / 60Hz, HDTV input supports 4K / 30Hz;
3. Supports MJPEG and YUY2;

5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect the input audio format and convert it to 48KHz PCM audio;
10. 2 collection rods can be used on a PC;

12. The picture quality is clearer, the RGB color range is 0 ~ 255, the delay is better;
13. Support all third-party player software compatible with UVC and UAC protocols;

Video Capture Card Box System Requirements:
Computer system requirements:
Windows 10 / Windows 8.1 / Windows 7 (SP1);


4 GB RAM (8 GB recommended)
Mobile phone system requirements:
Android phone (supported by newer phones);
Only supports USB2, not USB3. (The reason is that android UVC driver does not support USB3);
If it is a USB Android phone, you need to force the pure USB2 cable into the USB2 mode to use.

Video Capture Card Box Specifications:

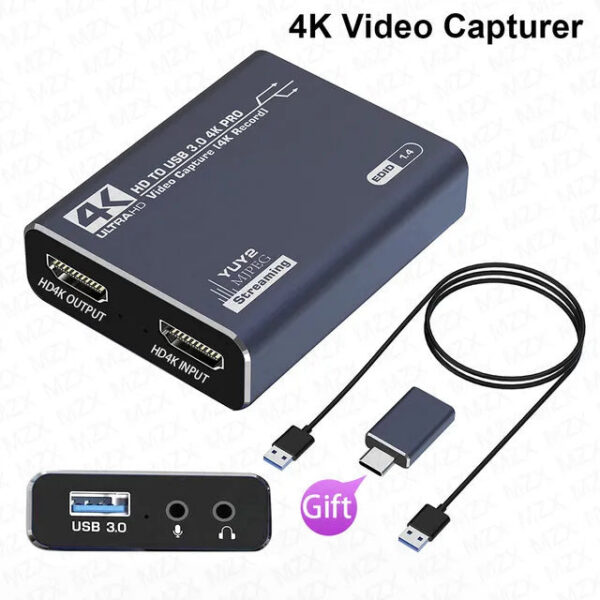

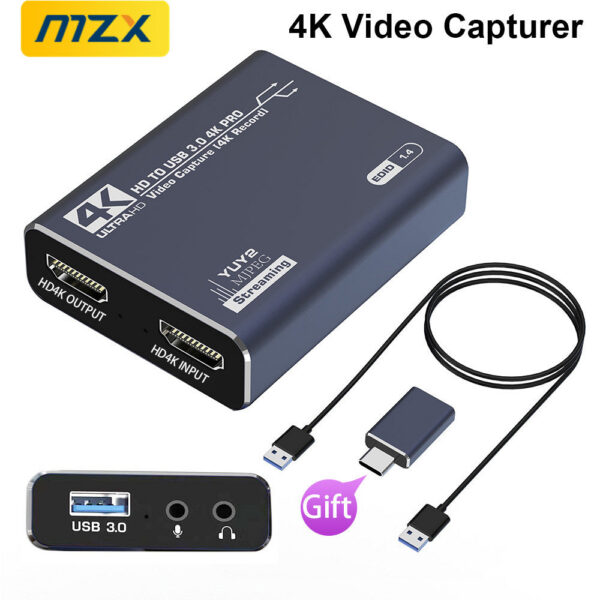

1. Input interface: 1 HDTV interface, 1 Microphone hole;
2. Output interface: 1 USB3.0 port, 300 ~ 350MB / s throughput, 1 Audio hole, 1 HDTV interface;
3. HDTV input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280×960, 1024×768, 800×600, 640×480;
4. HDTV sound input: LPCM sound signal;
5. HDTV input format: compatible with HDTV 1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640×480 / 720×480 / 720×576 / 800×600 / 1024×768 / 1280×720 /
1280×960 / 1280×1024 / 1366×768 / 1360×768 / 1440×900 / 1400×900 / 1680×1050 / 1920×1080
frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps;

8. Audio and video capture: it conforms to UVC (USB video class) and UAC (USB audio class) standards;
9. Output color space: YUV, RGB;
10. Support operating system: Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;
11. Software compatibility:
Adobe Flash Media Live Encoder (Windows, OS X);
Real Producer Plus (Windows); VLC (Windows, OS X, Linux);
QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, PotPlayer and etc.
12. Power consumption:=2.5W;
13. Working temperature: 0-70 degrees Celsius;
14. Storage temperature: -20-120 degrees Celsius;
15. Storage humidity: 5% -90%.

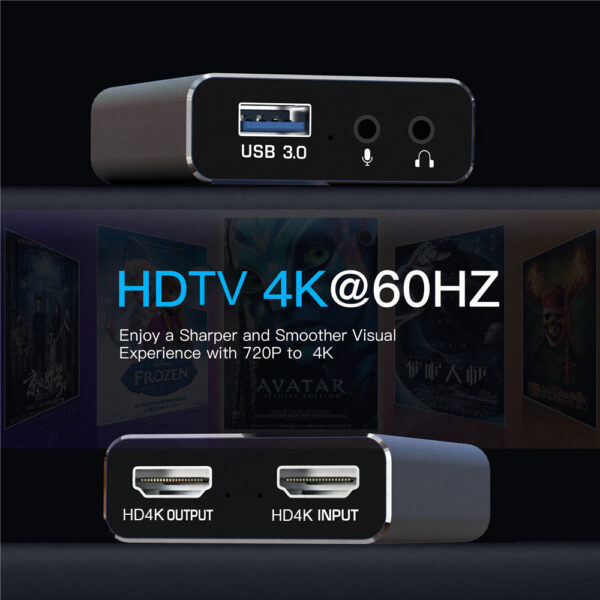

Video Capture Card Box Interface Descriptions:
1. Signal indicator: When the device captures video normally, the indicator lights up;
2. Power indicator: When the device is connected to the USB port of the computer, this indicator lights;
3. HDTV input: This slot is where the HDTV output source such as camera, camcorder, game box, IPTV box, etc. is connected;



Video Capture Card Box Interface Pictures:

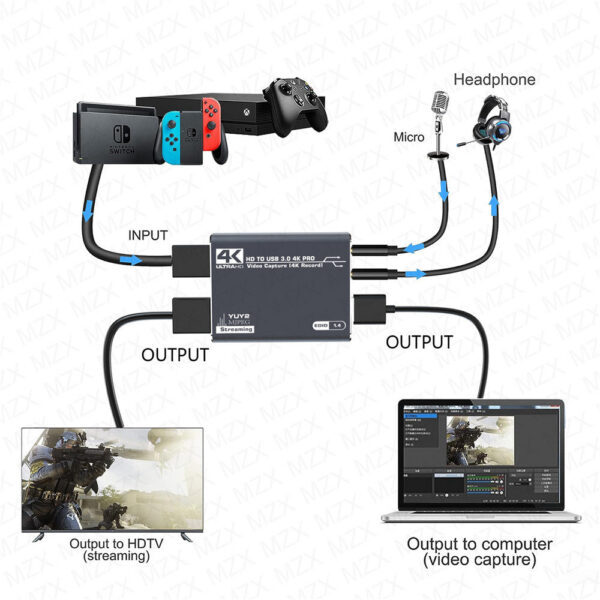

How to connect?kvm switch,usb switch,switch usb,kvm switch usb,usb kvm,usb switch 2 pc,switch kvm,kvm usb,usb kvm switch,usb c kvm,kvm usb switch,switch usb,switch selector,mouse switch,usb switch,for kvm hdmi,hdmi kvm,kvm hdmi usb,hdmi switch,kvm switch hdmi,hdmi splitter,switch hdmi,switch kvm hdmi,kvm hdmi switch
