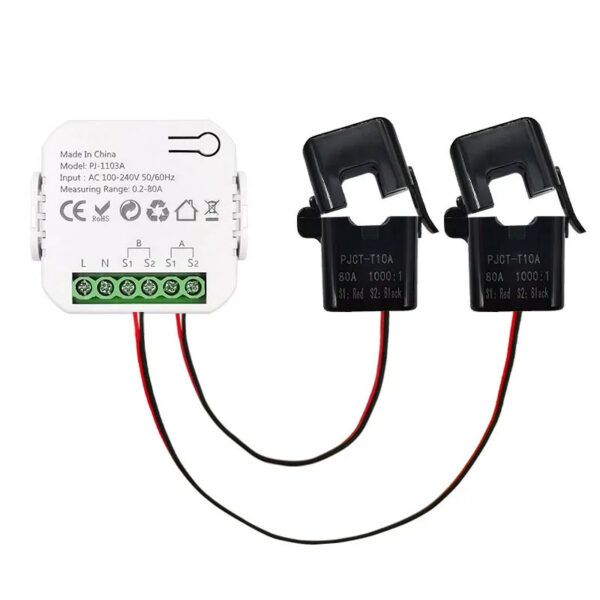

Tuya Smart New WiFi Energy Clamp Bidirectional Meter with Buzzer Alarm for Threshold App Monitor Export Import Power AC110V/240V

NOTE

1. This device is not compatible with Home Assistant and other APP. Please use Tuya or Smart Life APP.

2. Please connect L and N carefully to avoid damaging the equipment. Please handle the connection of the cable (L+N) correctly; otherwise, it is easy to cause a short circuit.

3. Please note that there can only be a live wire in the clamp. There cannot be both a live wire and a neutral wire at the same time.

4. The APP can only view the power consumption for each day and each month, but not for a few days. You need to calculate it yourself.

5. The formula for calculating AC power is 😛 = UI cosθ(cosθ≤1)， represents the power factor of the circuit. Only resistive loads, such as incandescent lamps, dryers, heaters, electric water heaters, etc., have a power factor equal to 1.

6.This device can only be used for single-phase electricity (L+N), not for L+L+N.

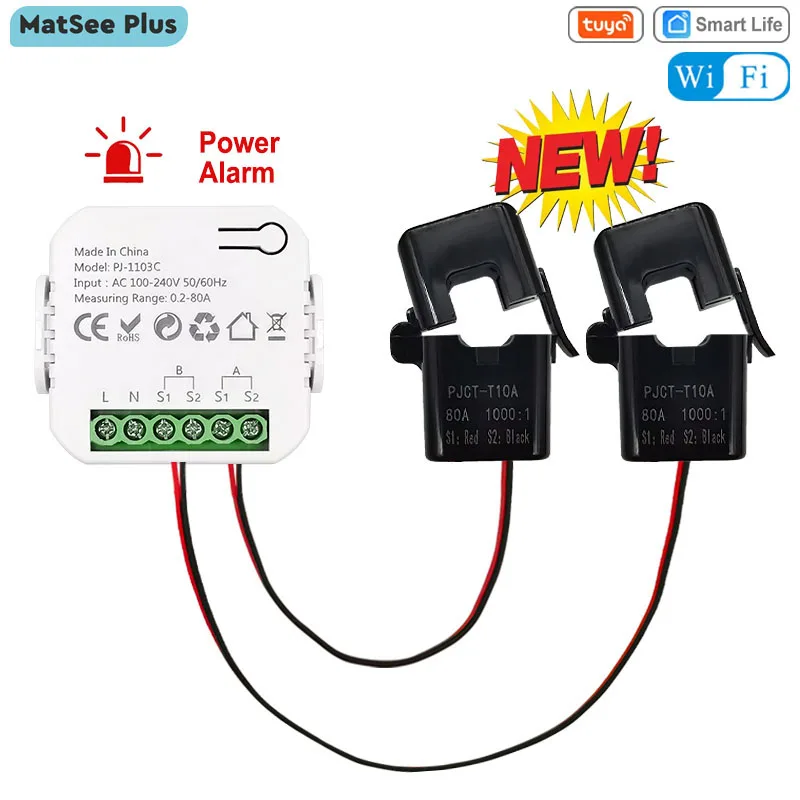

NEW ARRIVAL Tuya WIFI Smart Dual Channel Energy Meter with Buzzer Alarm and App Alarm for Threshold Value Setting  1/2 Clamp 80A- Bidirectional for Measuring Export and Import Energy.

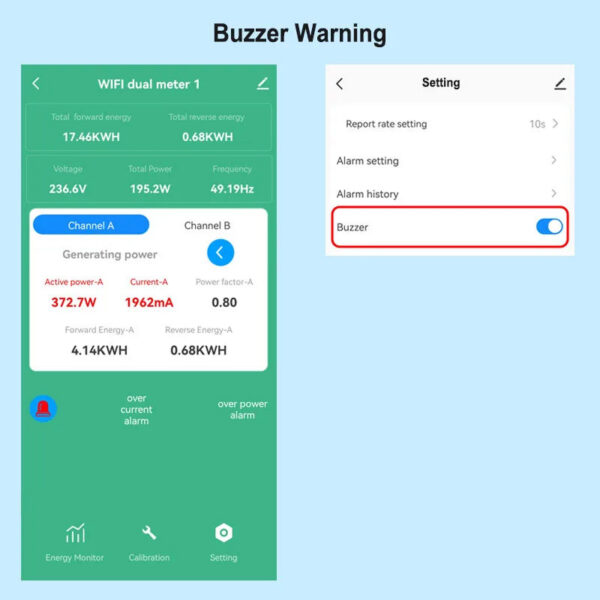

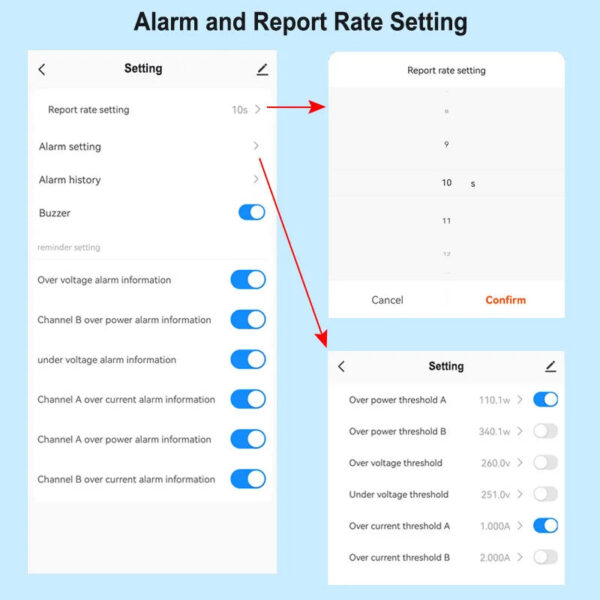

App Set threshold value for Voltage, Current and Power, when the value reaches the value , the device can buzzer alarm and App can send alarm message

Can review the alarm history on App

App can display Channel A and B Real-time power, current, voltage for Forward and Reverse direction clearly

You can view hourly (within 7 days), daily, and monthly energy consumption

2 Channels For Reverse and Forward direction

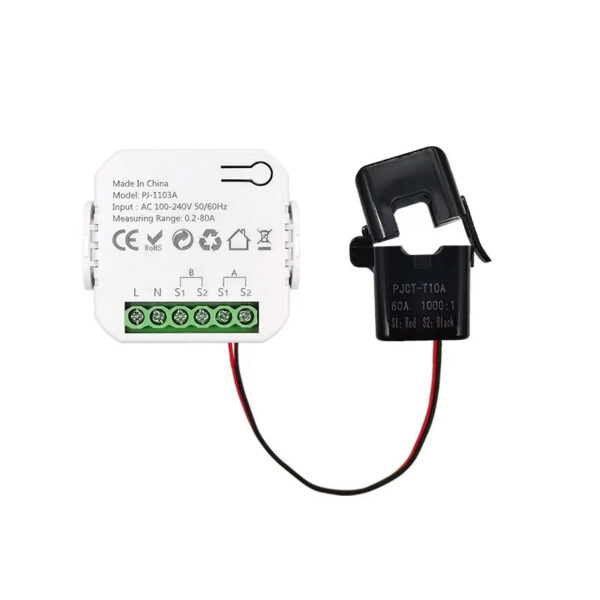

1 Channle or 2 Channels are available to Choose

And you can read from App for each Channel

– Real-time total power of 2 channels of reverse and forward direction

– Power for Channel A and B Separately(W)

– Current(mA)

– Voltage(V),

– Power factor, and Frequency(Hz)

Electricity Statistic for each channel in Forward and Reverse direction.

Hourly Elec. (KWh)

Daily Elec. (KWh)

Monthly Elec. (KWh)

Yearly Elec. (KWh)

Technical data:

Rated Voltage:100-240V AC 50/60Hz

Measurable Current Range: 0.2A-80A

WiFi Frequency: 2.4GHZ (Not Support 5Ghz)

Ambient Temperature Range:-10°C ~ 55°C

Electricity Statistic Channel A , B Separately and Total daily monthly, yearly Reverse and Forward Direction

Automation , It allows to make a Scene for this device working with other tuya devices

For example, when the reverse or forward power (watts) or KWh reaches a value, the other tuya switch can turn on , or turn off

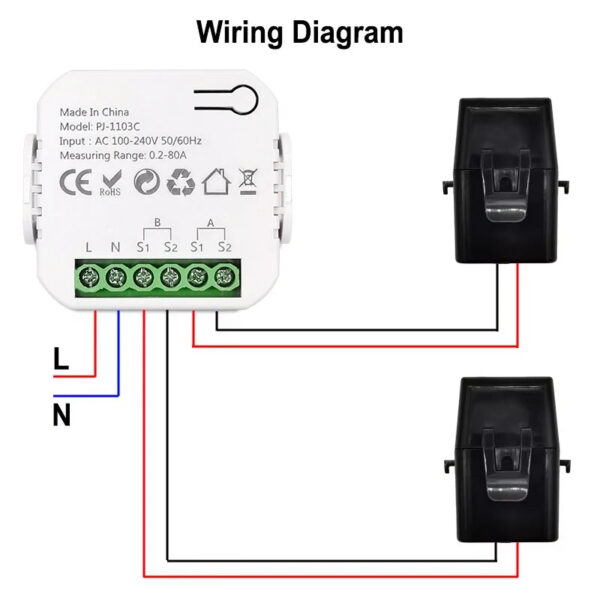

Wiring Diagram

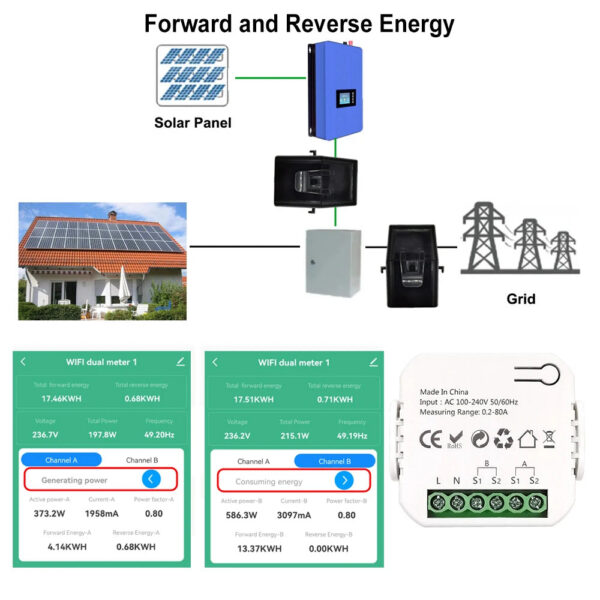

1. To measure the power ‘from Grid’ and ‘To Grid’

Please note to make sure the circuit mesaured is in the same phase as the circuit power to the module.
