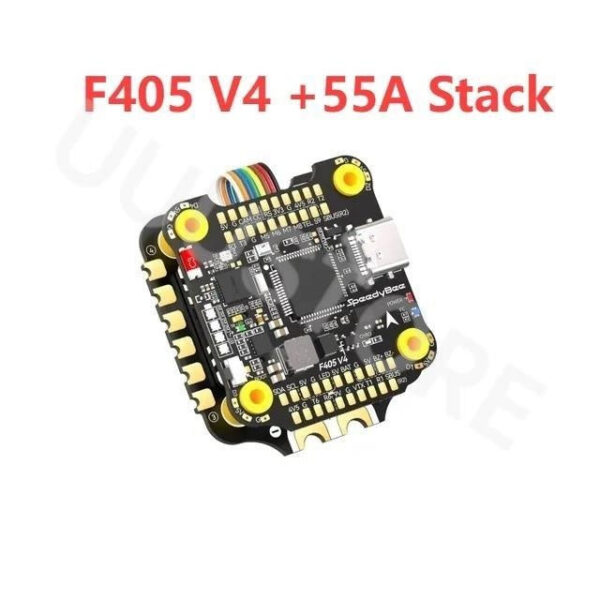

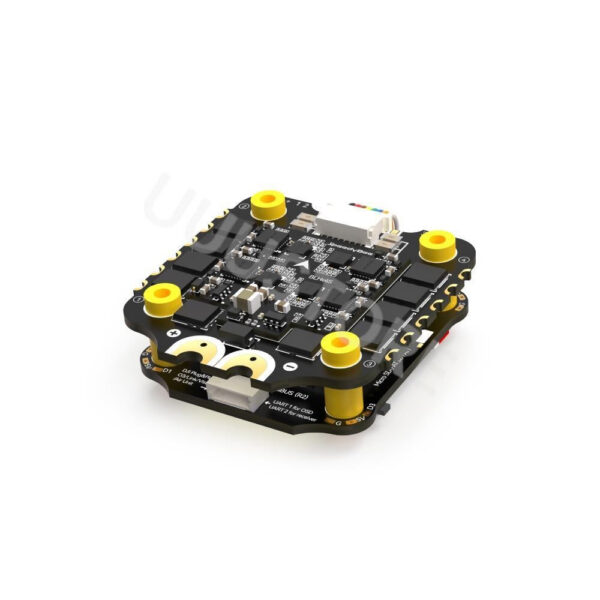

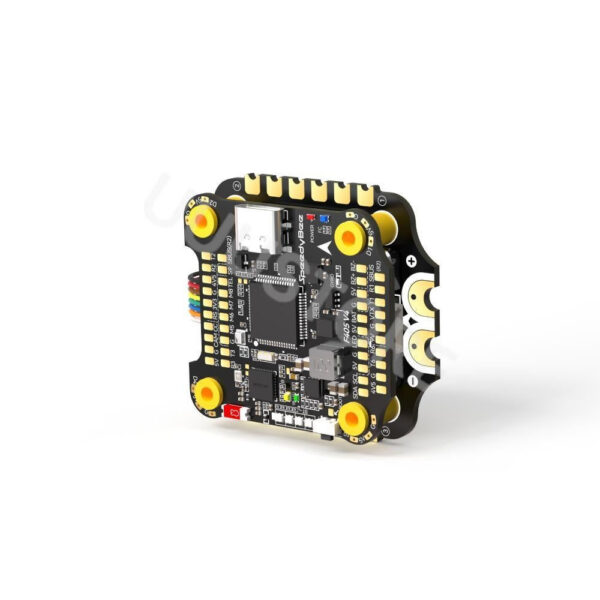

SpeedyBee V4 3-6S 30X30 FC&ESC Stack ICM42688P F405 Flight Controller BLS 55A 4in1 ESC for FPV Freestyle Drone Model

Specifications

Product Name

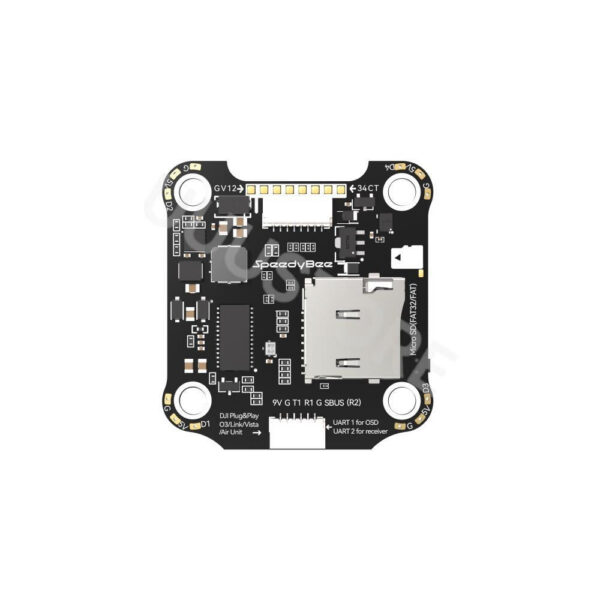

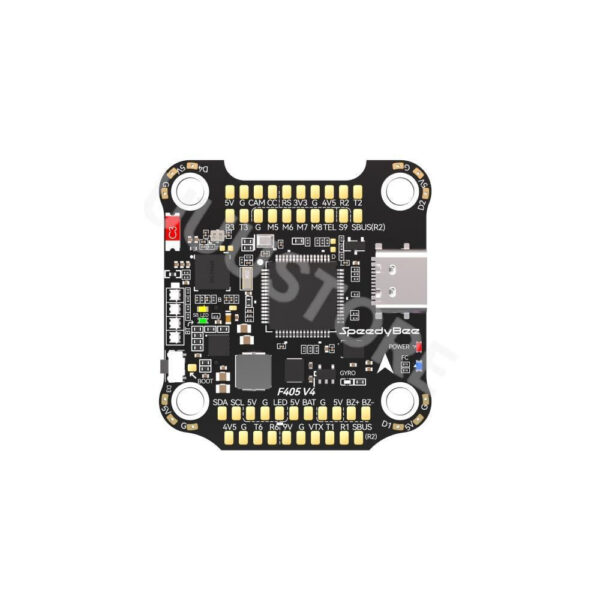

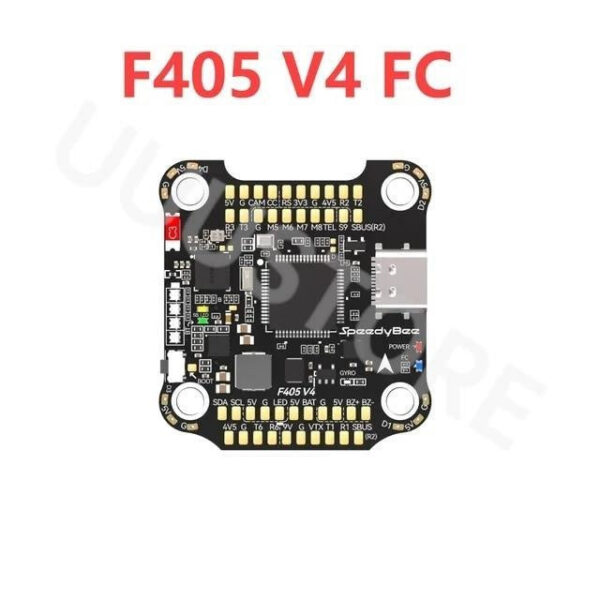

SpeedyBee F405 V4 30×30 Flight Controller

MCU
STM32F405

IMU(Gyro)
ICM42688P

USB Port Type
Type-C

Barometer
Built-in

OSD Chip
AT7456E chip

BLE Bluetooth
Supported. Used for Flight Controller configuration (MSP should be enabled with Baud rate 115200 on UART4)

WIFI
Not supported

DJI Air Unit Connection Way
Two ways supported: 6-pin connector or direct soldering.

6-pin DJI Air Unit Plug

Blackbox MicroSD Card Slot
 3rd party formatting tool and choose ‘Overwrite format’ then format your card. Also check out here for the recommended SD cards or buy the tested cards from our store.

Current Sensor Input
Supported. For SpeedyBee BLS 55A ESC, please set scale = 400 and Offset = 0.

Power Input
3S – 6S Lipo(Through G, BAT pins/pads from the 8-pin connector or 8-pads on the bottom side)

5V Output
9 groups of 5V output, four +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 4x LED 5V pads. The total current load is 3A.

9V Output
2 groups of 9V output, one +9V pad on front side and other included in a connector on bottom side. The total current load is 3A.

3.3V Output
Supported. Designed for 3.3V-input receivers. Up to 500mA current load.

4.5V Output
Supported. Designed for receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load.

ESC Signal
M1 – M4 on bottom side and M5-M8 on front side.

UART

ESC Telemetry
UART R5(UART5)

I2C
Supported. SDA & SCL pads on front side. Used for magnetometer, sonar, etc.

Traditional Betaflight LED Pad
Supported. 5V, G and LED pads on bottom of the front side. Used for WS2812 LED controlled by Betaflight firmware.

Buzzer
BZ+ and BZ- pad used for 5V Buzzer

BOOT Button
Supported.[A]. Press and hold BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked.[B]. When the FC is powered on and in standby mode, the BOOT button can be used to controller the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware.

RSSI Input
Supported. Named as RS on the front side.

Smart Port / F.Port
Not supported

Supported Flight Controller Firmware
BetaFlight(Default), INAV

Firmware Target Name
SPEEDYBEEF405V4

Mounting
30.5 x 30.5mm( 4mm hole diameter)

Dimension
41.6(L) x 39.4(W) x 7.8(H)mm

Weight
10.5g

Product Name

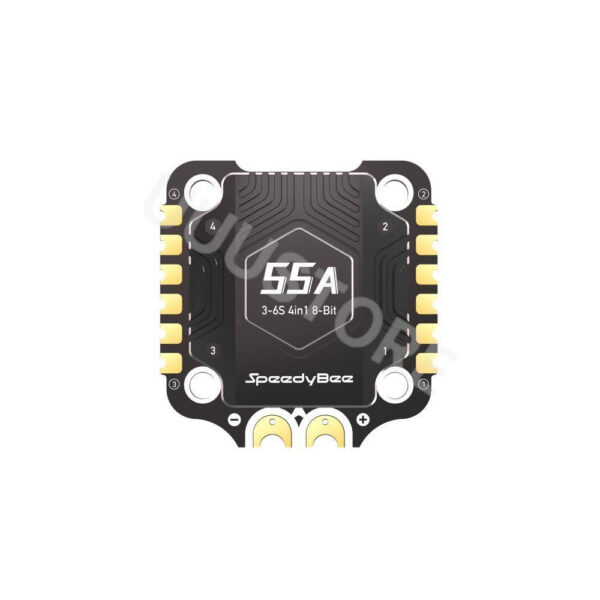

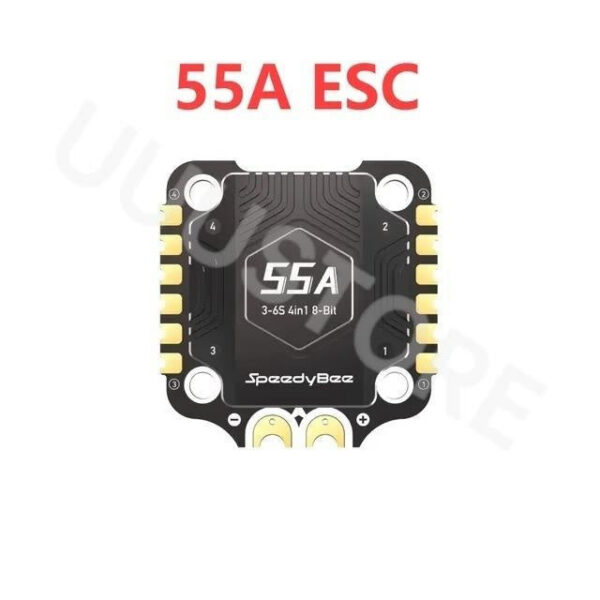

SpeedyBee BLS 55A 30×30 4-in-1 ESC

Firmware
BLHeli_S J-H-40

Wireless Configuration
Full Configuration Supported in the SpeedyBee app

PC Configurator Download Link
https://esc-configurator.com/

Continuous Current
55A * 4

Burst Current
70(10 seconds)

TVS Protective diode
Yes

External Capacitor
1000uF Low ESR Capacitor(In the package)

ESC Protocol
DSHOT300/600

Power Input
3-6S LiPo

Power Output
VBAT

Current Sensor
Support (Scale=400 Offset=0)

ESC Telemetry
Not supported

Mounting
30.5 x 30.5mm( 4mm hole diameter)

Dimension
45.6(L) * 44(W) *8mm(H)

Weight
23.5g
