Typical Application Fields : Internet of Things (IoT)
High-concerned chemical : None
Compatible With : Meshtastic
Accessory Type : SENSOR
Brand Name : seeed studio
Origin : Mainland China
Feature
It is an economical solar-powered comms node or repeater based on Meshtastic. It meets basic comms needs in no – network zones. Unlike P1-Pro, P1 lacks a built-in GPS module and four 18650 batteries, yet keeps core comms. It’s perfect for budget-constrained scenarios or those not needing precise location, like environmental monitoring and short – range network setups.
The native firmware of this product is meshtastic. If you need Meshcore, you need to refer to the following wiki tutorial to flash the Meshcore firmware or contact me to obtain the wiki:https://wiki.seeedstudioget_started_with_meshcore_solar_node/
Note:
SenseCAP Solar Node P1is cost-effective and lacks the XIAO L76K GPS module and four 18650 batteries. But users can buy and install them independently.
For the model with positioning GPS and batteries, opt for theSenseCAP Solar Node P1-Pro.
Specification
P1
P1-Pro
SenseCAP Solar Node
18650 Batteries x 4 (Built – in)
—
XIAO L76K GPS Module (Built – in)
—
Mounting Brackets
Universal Joint
Connector
Hoop Bracket
Hoop Ring
2dBi 868 – 915MHz Rubber Rod Antenna
RF Cable: RP-SMA Male to RP-SMA Female-300mm
Black Type-C Cable
User Manual

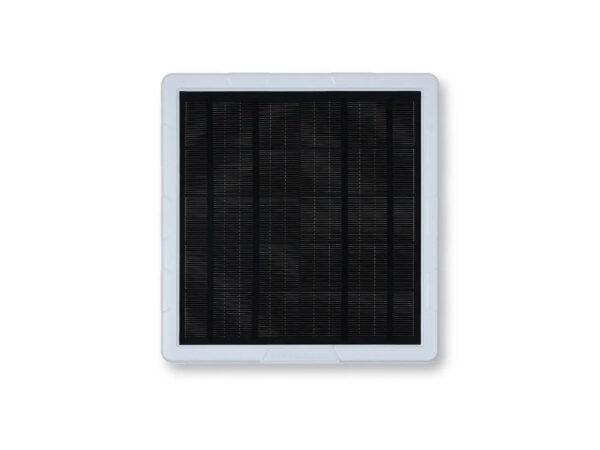

Integrated with a5W solar panel, and supports external batteries (which need to be provided by users themselves).
The device comespre-installed with Meshtastic firmwareat the factory. It can be seamlessly integrated into the Meshtastic ecosystem.
Compatible with theGrove ecosystem, and supports plug-and-play of sensors such as temperature and humidity sensors, light sensors, etc.

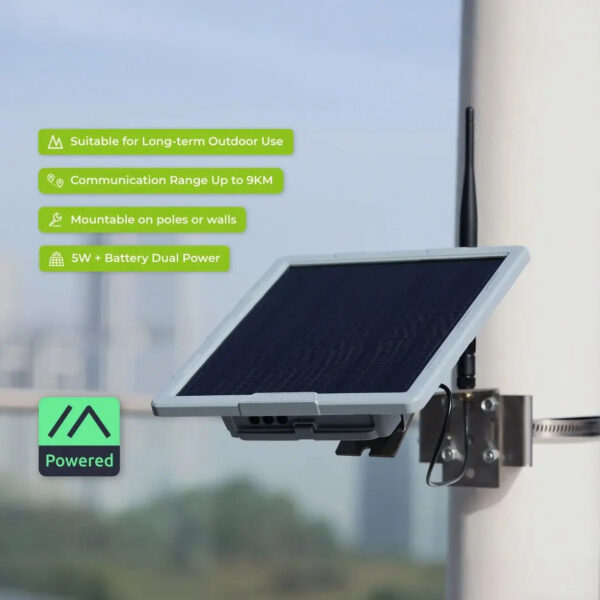

It is suitable forlong-term outdoor use.
Supports 8 to 9KM Transmissioninopen areas. It can be used as an outdoor node or repeater, easily expanding the Mesh network and enhancing network coverage.
Accessory Options：If you need an antenna with higher gain, we recommend the860-930MHz 3dBi fiberglass antennaand the902-928MHz 5.8dBi fiberglass antenna.
Plug-and-play: Comes with a standard RF cable, which can be directly inserted into the pre-drilled hole (standard D-shaped hole) on the Solar Node bracket
Users self-purchase and addXIAO L76K(Support GPS/GLONASS/Galileo)
Antenna
LoRa:
Type: Rod-shaped rubber antenna
Frequency range: 868-915MHZ
Gain: 2dbi
GNSS:
GPS L1 C/A: 1575.42MHz
GLONASS L1: 1602MHz
BeiDou B1: 1561.098MHz
Bluetooth 5.0
Solar Panel
5W
Interface
Grove *1: IIC/GPIO
USB-C debugging
Button
Power on/off
Reset
User-defined
LED
Charging status indicator lights *2
Solar panel status indicator light *1
Mesh heartbeat light *1
User-defined *1
Power supply
5V
Battery

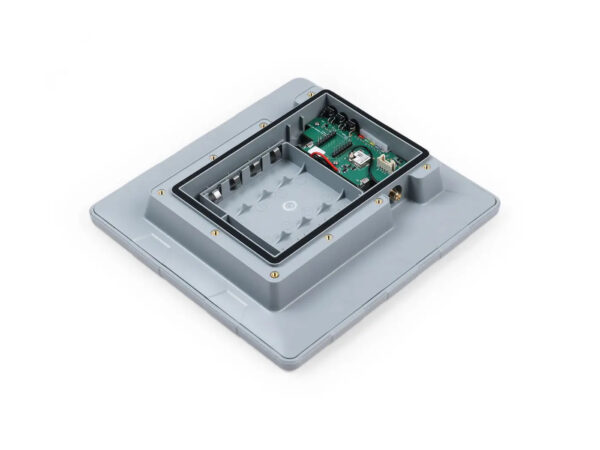

P1 version without batteries;
P1 Pro Version includes batteries

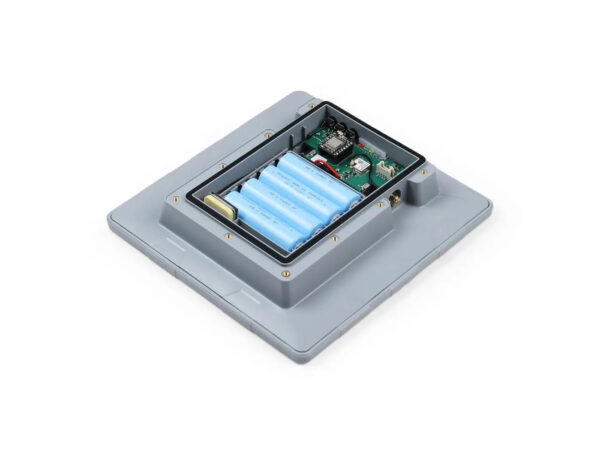

4 x 18650 lithium batteries (3350mAh each)
● Supporting Type-C and solar charging.
● Discharge environment：-40 ~ 60°C
● Charging environment: 0 ~ 50°C
Dimension
191.2 x 201.2 x 42.1 mm
Hardware Overview

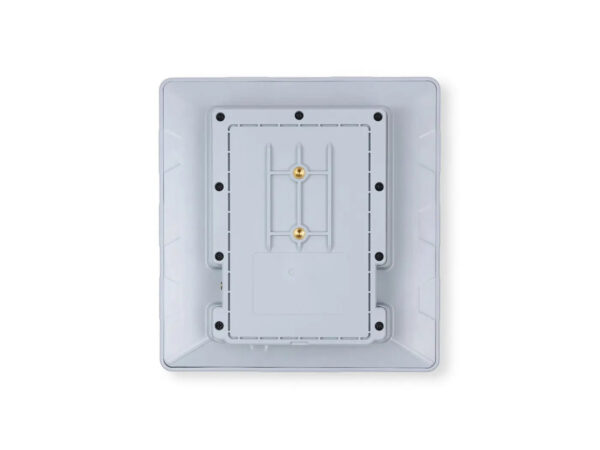

Overall effect diagram

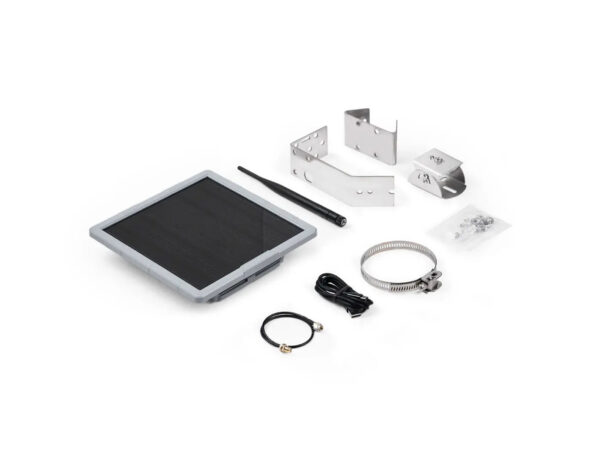

Accessories diagram
①
2dbi, 868~915MHz rubber rod antenna
②
Universal joint bracket, angle adjustable.
③
Bracket connector, can support the antenna
④
RF Cable; RP-SMA Male to RF-SMA Female; 300mm
⑤
Hoop bracket
Diameter:
70-100mm
⑥
Hoop ring

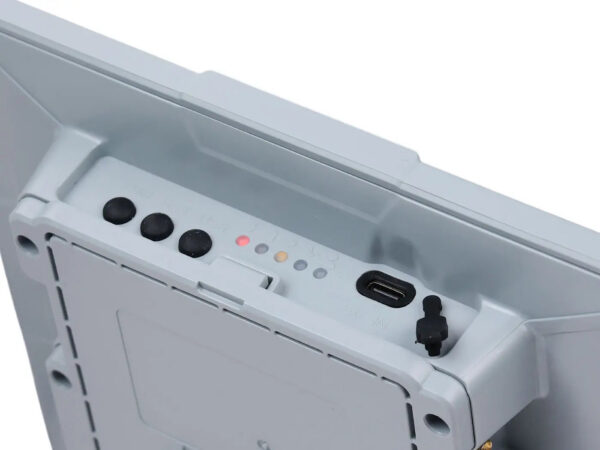

Interactive items
⑦
Power switch
⑧
Reset
⑨
User-defined
⑩
Red light on:Charging
⑪
Green light on:Charged
⑫
Yellow light on:Device is exposed to light.
⑬
Blue light:Mesh heartbeat
⑭
White light:User-defined
⑮
Type-C: 5V 1A
Dimension diagram
Application
Outdoor Adventure:Send real-time location and text messages in areas without network coverage.
Mesh Network Expansion:Serve as a Mesh relay node to expand the coverage of the existing Meshtastic network. Support multi-hop transmission, where data can be relayed through multiple nodes, enhancing network reliability.
Educational Experiments:Learn about the development of Meshtastic and LoRa decentralized networks.
Environmental Monitoring:Provide a Grove interface to connect sensors for remote monitoring of the environment (such as temperature, humidity, air quality, etc.).
Part List
SenseCAP Solar Node P1 (without GPS & battery) / SenseCAP Solar Node P1 Pro (wout GPS & battery)
1
Mounting Brackets
Universal Joint
Connector
Hoop Bracket
Hoop Ring
1
2dBi 868 – 915MHz Rubber Rod Antenna
1
RF Cable: RP-SMA Male to RF-SMA Female-300mm
1
Black Type-C Cable
1
User Manual
1
Color
P1, P1 Pro (battery GPS)
