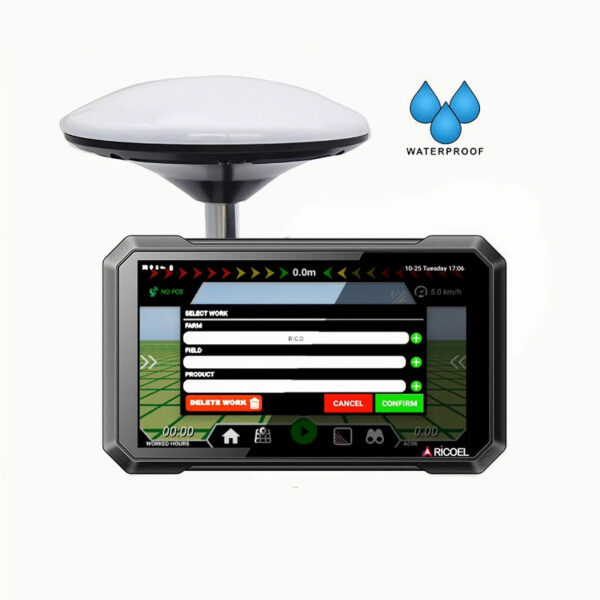

RICOEL 7 Inch Waterproof GNSS Agriculture Farming Display GPS Navigation Guidance for Tractor

Products Description

[IPX5 Weatherproof design] Endure the higher levels of vibration and the generally harsher conditions. It allows farmers to work during low visibility field conditions such as rain, dust, fog, and darkness.

[Mount] Come with aluminum 360 degree rotation adjustable mount. [Free APP]

[High Performance] High sensitive capacitive touch panel, support Bluetooth 4.0. WiFi 802.11b/g/n.

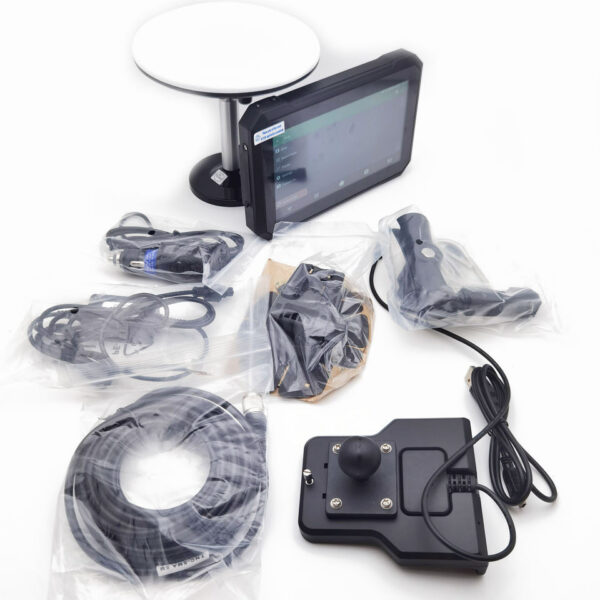

[GNSS Antenna]The Tractor GPS Screen Kit with external Roof mounted antenna

[Dual Band]: It comes with L1-L5 dual frequency positioning module, which makes positioning faster, more accurate and more reliable.

[Pass to Pass] with Advance precision technology Pass to Pass accuracy up to 20cm

Product Paramenters

Model No.
TG-7R

Gerneral
Screen
7 capacitive touch screen

Resolution
1024X600 px TFT

Processor
Quad-core 1.3GHZ

Memory
2GB

NAND
16GB

OS
Android

GNSS Module
Singal Frequency
GPS/QZSS :L1CA, L1C,L5GLONASS: L1BeiDou: B1C,B1I,B2aGALILEO: E1,E5SBAS: WAAS, EGNOS, MSAS, GAGAN, SDCM (L1)

Channels
136

Positioning accuracy
about 0.6m, P2P 0.2m

Positioning Refresh Rate
10GHZ

Time to first fix
Cold Start:=28s Hot Start: = 1s

Function
BT
4.0 version

FM Transmitter
KT0806 75-108MHZ

Other
Interface

Interface (optional)
Serial Port, RS232, COM

Speaker
2W / 8Ω

Waterproof Rate
IP65

Input
5V 2A

Battery
3000 mAH/3.7V

License Life time Usage APP Description:

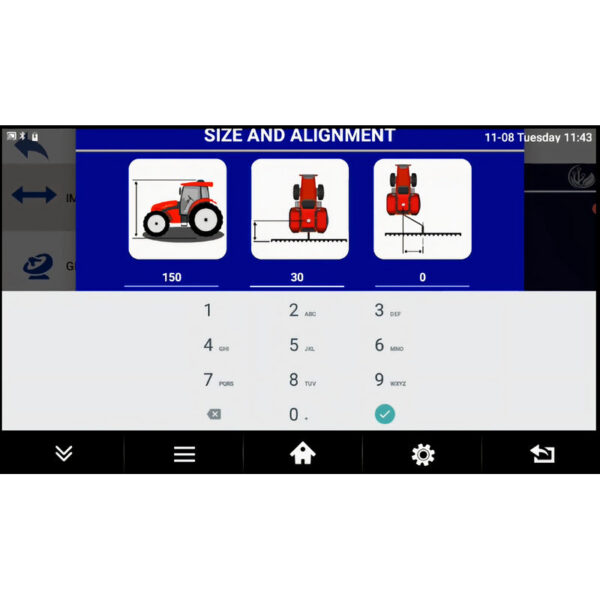

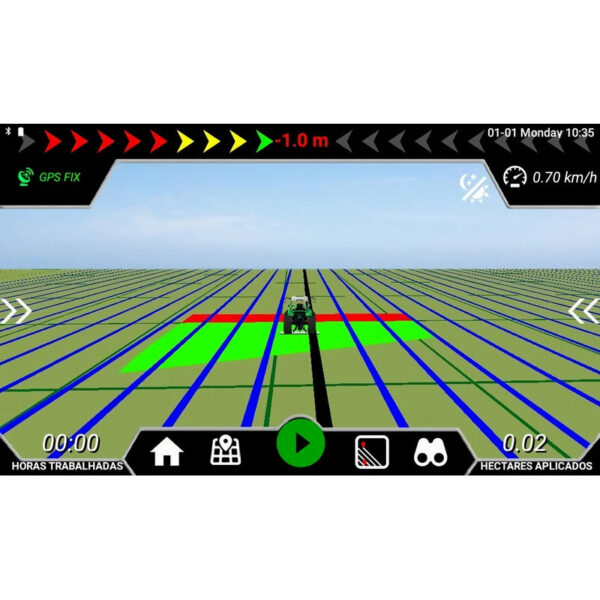

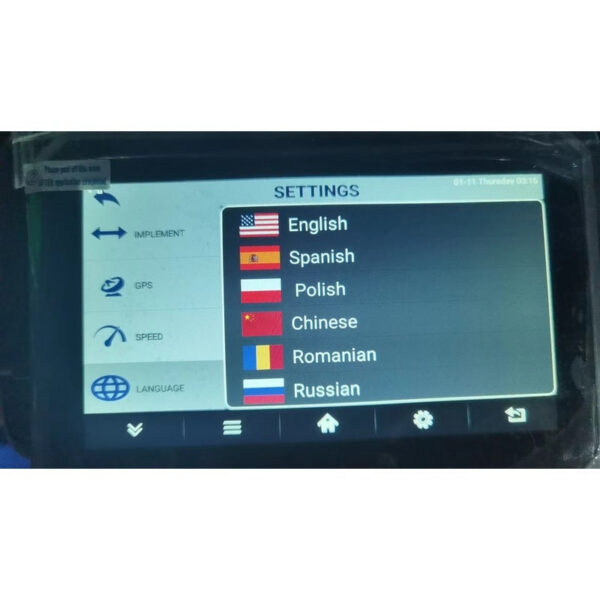

Main Specs:* Friendly user interface* Guidance modes: AB Line, AB Curves, Pivot and adaptive curve* Multiple boundary* Insert obstacle* Setup speed limits alerts and change the color of tracking accordingly* Setup machine width and offset* Support Bluetooth( 2.0 and 4.2) and RS232 GNSS receivers* Support RS232 GNSS receivers* Export maps to .shp and .kml formats.* Languages: Chinese,English, Spanish,Romania,Russia,and PolishSpecifications

Material Type
Durable Plastic

Brand Name
RICOEL

Origin
Mainland China

Type
GPS Navigator

Car Fitment
Universal

Screen Type
LCD

Model Numbe
TG-7R

Car Make
all

Operation System
Android OS

Waterproof
IPX7

Touch

Antenna
External GNSS Antenna

GNSS
GPS/QZSS GLONASS BeiDou GALILEO SBAS

Model
Universal

OS
ANDROID

Resolution
1024*600

Combination
Radio Tuner, MP3/MP4 Player

Use
agriculture

Product name
agriculture gps

Display
7 inch

Memory
16GB

Battery
3000mah

Application
lifetime usage
