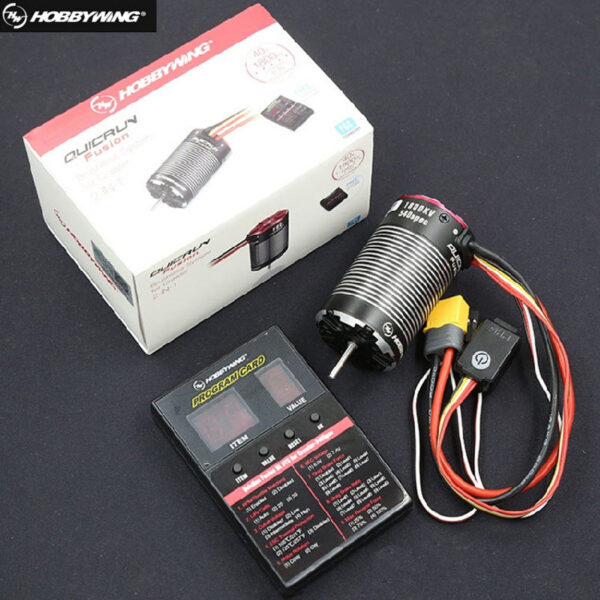

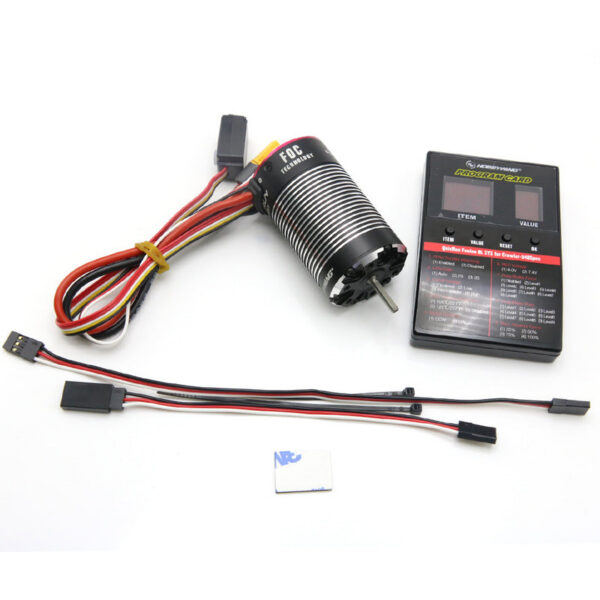

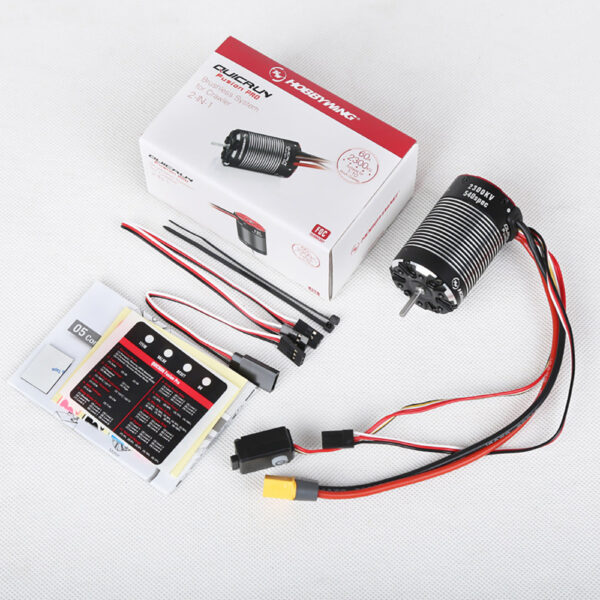

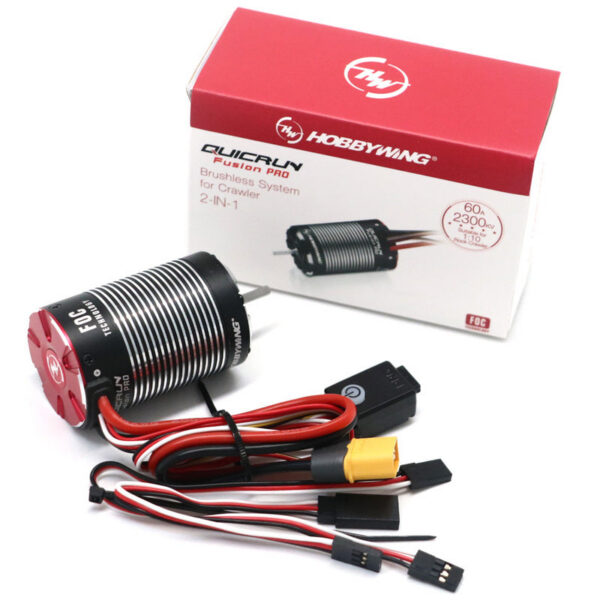

RC Car Parts Hobbywing Fusion 2 in 1 Crawler Motor ESC Speed Controller All-in-one XeRun 1800KV 2300KV Setting Card Program Box

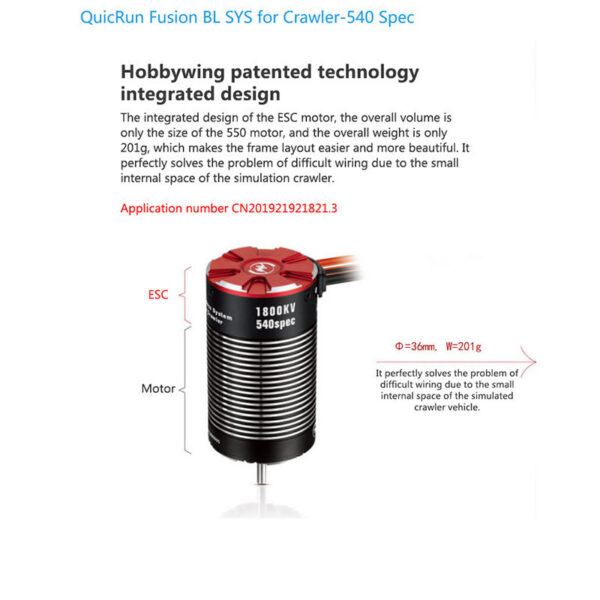

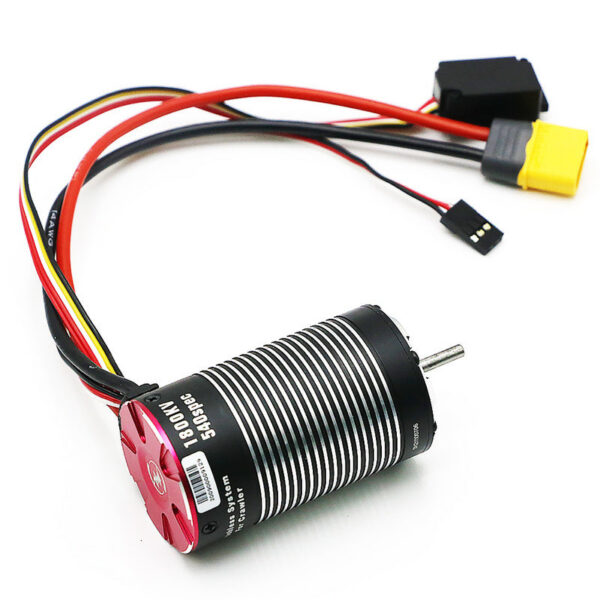

Product nameQuicRun Fusion BL SYS for Crawler-S40 SpecProduct number30120400,30120401Types ofRatio: 1/10Brushed/Brushless: BrushlessSensor/Sensorless: SensorWaterproof characteristics: waterproofHardware specificationsContinuous/peak current: 40A/160ANumber of batteries: 2-3S Lipo/6-9 Cell NiMHBEC output: switch mode: 6V/7.4V @4AMotor KV value: 2300KVMotor outer diameter/length: 36mm/64mmShaft diameter/exposed shaft length: 3.175mm/16mmNumber of motor poles: 4Cable and plugPower cord: red-14AWG 200mm*1 black 14AWG-200mm*1Power plug: XT60 (unsoldered)Note: All the wire lengths above are the length of the raw material, not the length of the wire that is actually exposed to the outside of the ESC. The actual exposed length of the ESC will be slightly shorter than the marked value.Parameter programming methodSET button of ESC itself: not supportedLED programming parameter adjustment: supportLCD programming box tuning: supportWFi Express wireless module: not supportedProgramming interface: independent programming port (switch position)Description: 36*64mmWeight: 201g (including wire plug)Applicable models: 1/10 Crawler Model CarsProduct model: Fusion two-in-one Crawler dedicated motorFeatures: Adopting AXE XeRun technology, integrated ESC and motor (that is, the ESC is built into the motor shell)Motor parameters: 540-1800KV
