Multifunction Worktable Milling Machine Working Slide Table Vise Fixture Adjustment Worktable With Plat Nose Pliers For Drill

Original price was: $161.49.Current price is: $129.19.

Multifunction Worktable Milling Machine Working Slide Table Vise Fixture Adjustment Worktable With Plat Nose Pliers For Drill

SKU: SHOP-9393470537951 Category:

High-concerned chemical : None

Model Number : Milling Machine

Condition : New

CNC or Not : Normal

Brand Name : meterk

Origin : Mainland China

Certification : CE


Features:

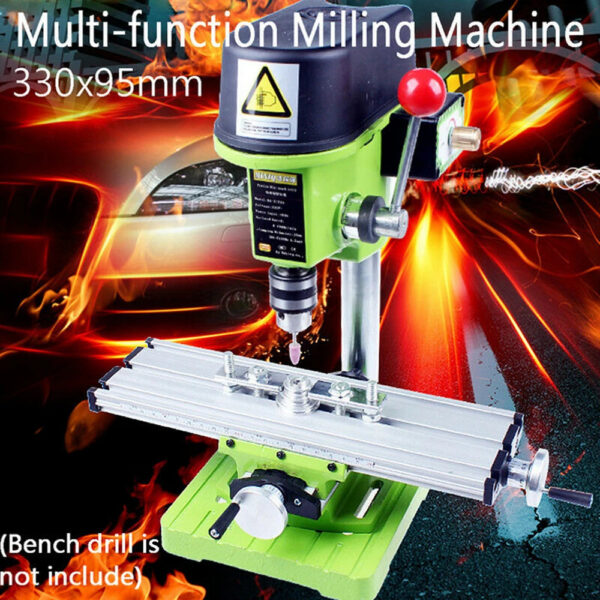

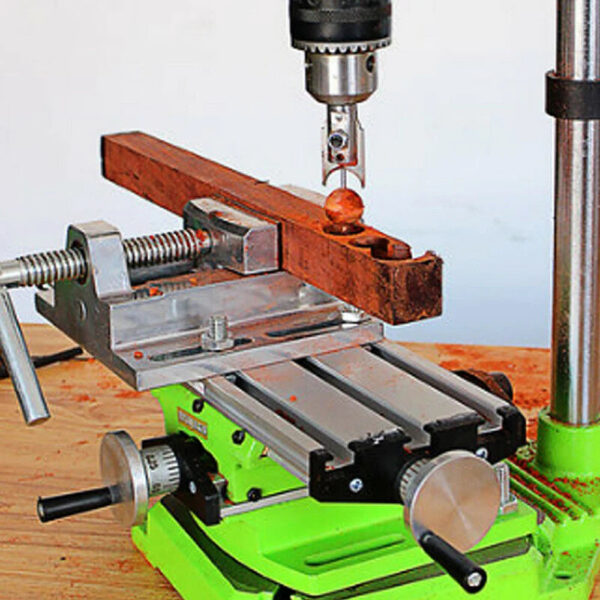

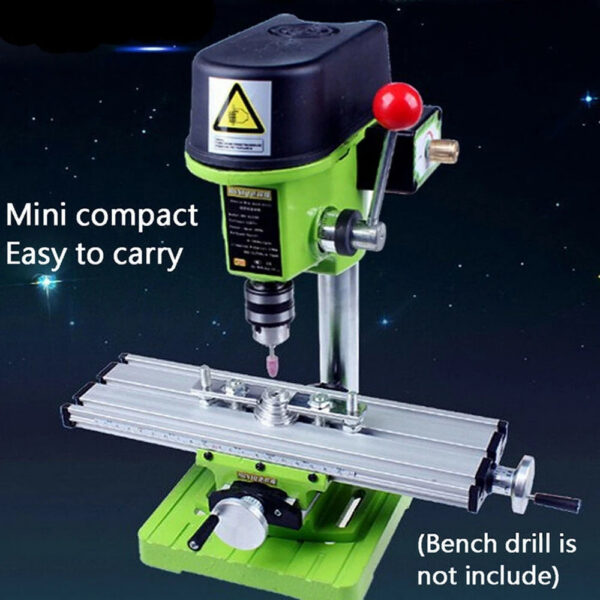

1. The table is suitable for mini drill and drill bracket series.
2. It can also apply to other suitable machine.

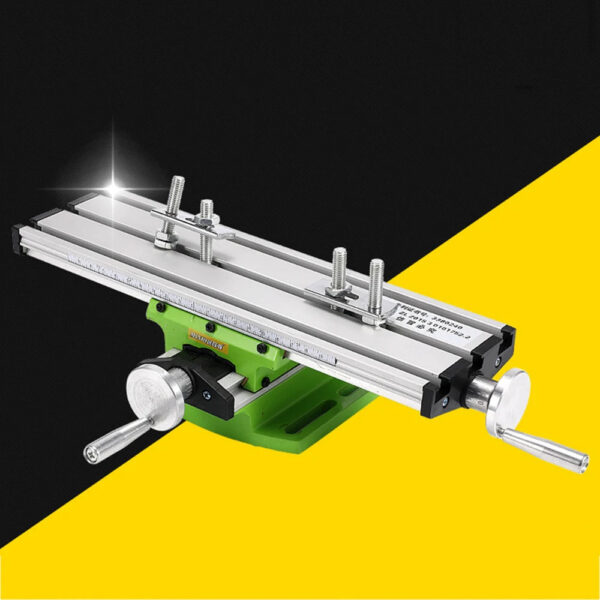

3. The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.
4. The working table with three T shaped groove.

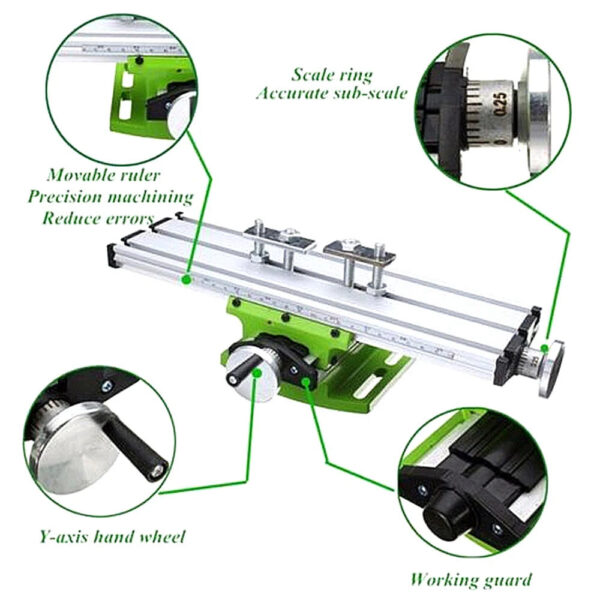

5. Scale is in front of the movable positioning.
6. Zero adjustment hand wheel rotates a circle of 1.25mm.
7. The X-axis distance is 200mm, Y-axis is 50mm.
8. Working table size is 310 x 90mm including two working clamp.

Specifications:
Table size: 300 * 85 * 78mm

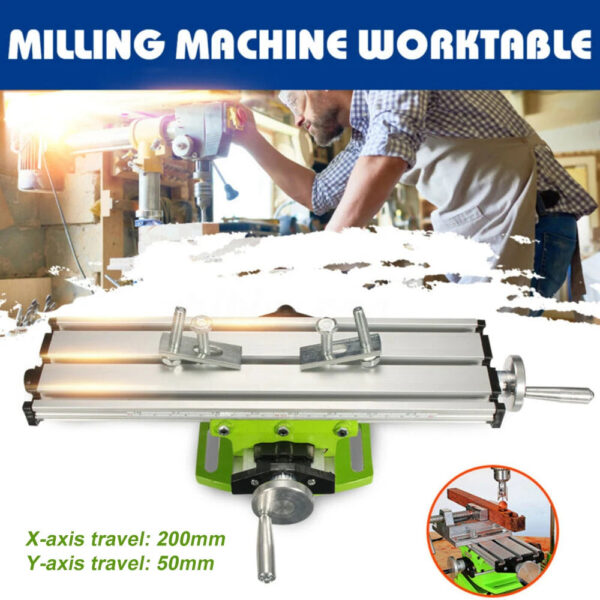

X-axis travel: 200mm
Y-axis travel: 50mm
Distance between grooves: 34mm
1 ring=1.25mm
1 scale=0.05mm
Package Weight: 1657g / 3.65lb
Package Size: 350 * 200 * 80mm / 13.78 * 7.87 * 3.15in


Note:

– Please allow 1-10mm size error due to manual measurement, thanks for your understanding!



Package List:
1 * Mini Multi-function Table
1 * Accessories Set
