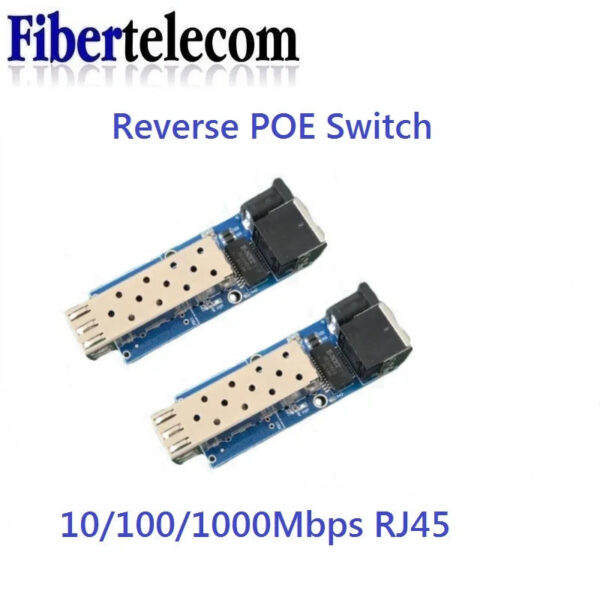

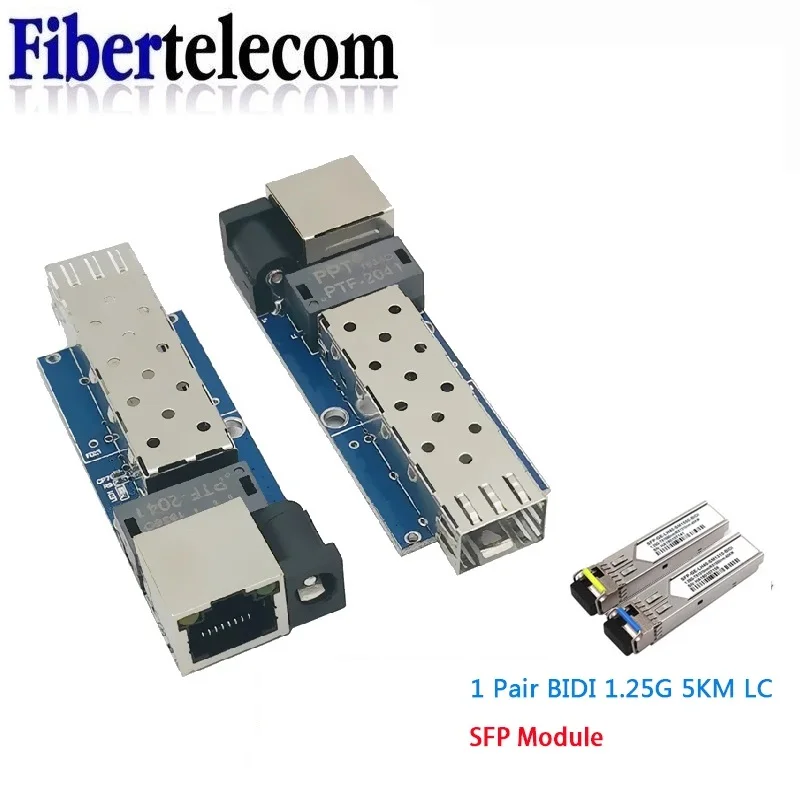

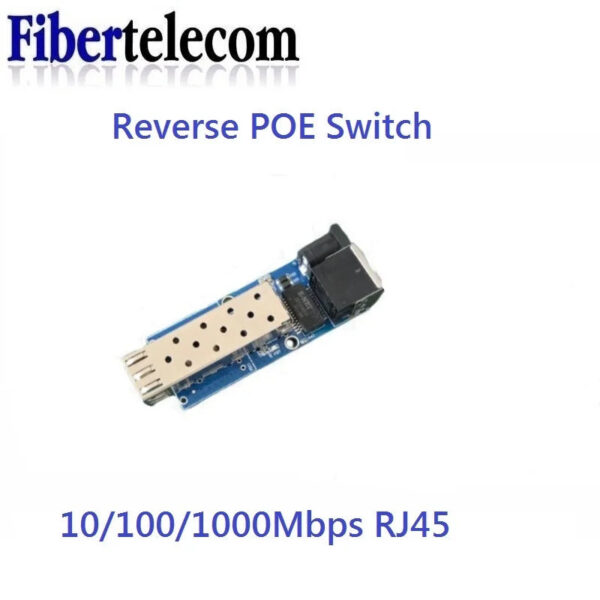

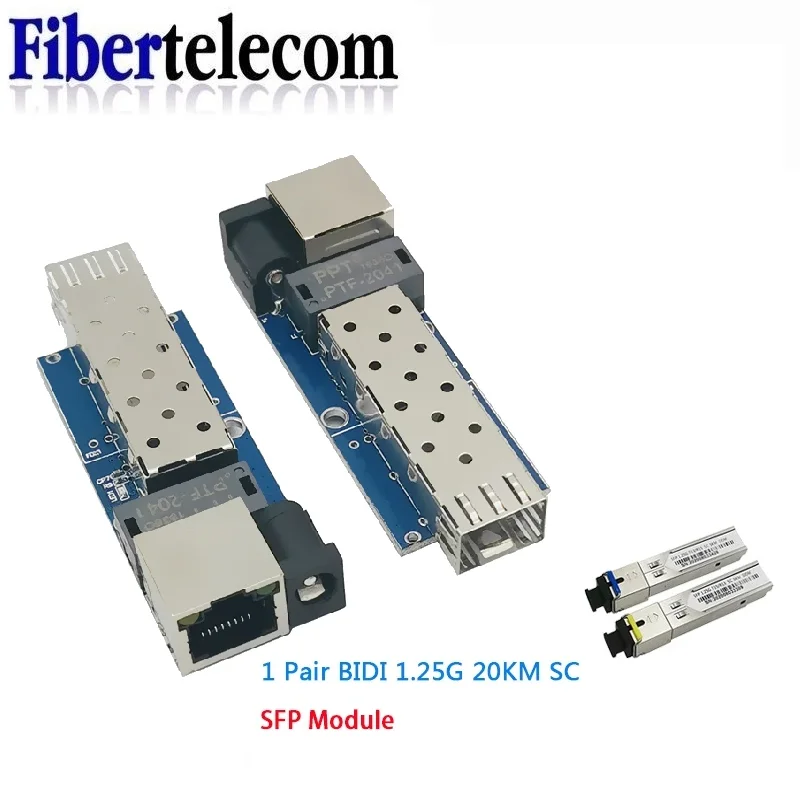

Mini RPOE 1.25G Media Converter Slot SFP Transceiver Module 5V -24cDC input 1 SFP Slot 1 RJ45 Ethernet SFP Fiber Switch

Please note:


1 PCS 1sfp +1* 10/100/1000Mbps RJ45 Reverse POE

POE Reverse switch board fiber media converter with 1sfp +1* 10/100/1000Mbps RJ45 Ethernet ports POE

reverse fiber optical switch



Fast power supply for your ending equipment!



1SFP1GE  Fiber Switch



JYD-1SFP1E series fiber switch is a reverse power supply Ethernet switch, power can be offered with the special POE power supply module through network cable. At the same time it can also provide 5-24VDC power supply to other ending equipments. It effectively solves the problem of power supply of equipments far away from the power source. What’s more, the power can be shut down when the equipment is not needed, which is energy-saving and environmental. There are 1 SFP ports and 1 10/100/1000Mbps Ethernert RJ45 ports. Transmission distance can be prolonged from 100M with twisted pair to 120KM.



Main Features:



Ø Support the switch between 10/100/1000Base-T and 1000Base-SX/LX

Ø 1*1.25Gbps full-duplex fiber ports and 1*1000M Ethernet ports with auto-negotiation function

Ø Support 1000M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation function

Ø Each port has the complete LED Indicator light

Ø There are 3 mode available. They are single mode single fiber, single mode dual fiber and multi mode dual fiber.

Ø Support IEEE802.1d Spanning Tree

Ø Support high performance QoS function on each port,support broadcasting storm control

Ø Support 5-24V voltage input through network cables from ending equipment.

Ø  4/5+,7/8- are for power supply.

Ø 5-24V DC voltage output.

Ø Internal 4K MAC Address Entities

Ø Support 9216 bytes Jumbo packet

Ø Support IEEE 802.3x flow control and back pressure control

Ø Require no configuration and will instantly operate as soon as you power it up

Ø Low power consumption chip with heat sink built in to ensure longtime efficient operation.
