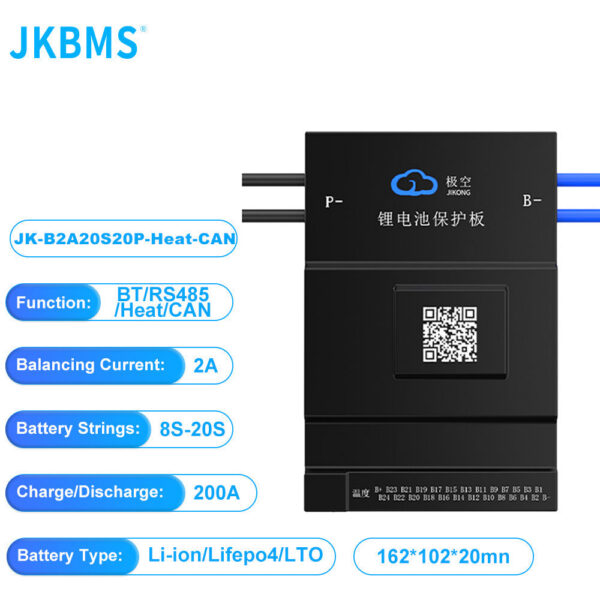

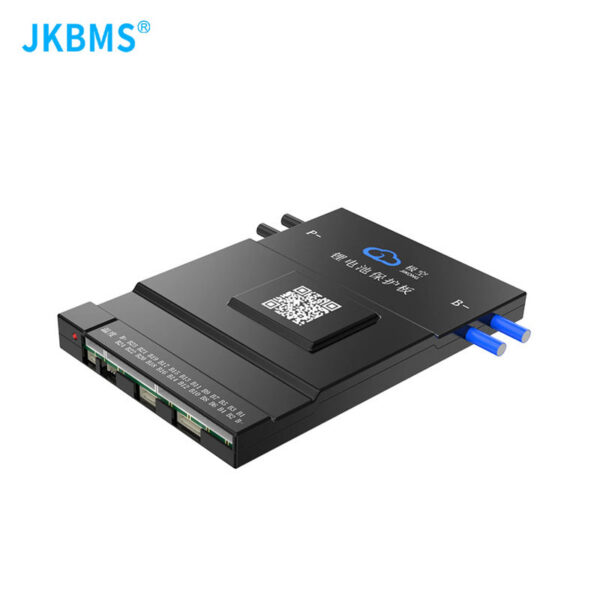

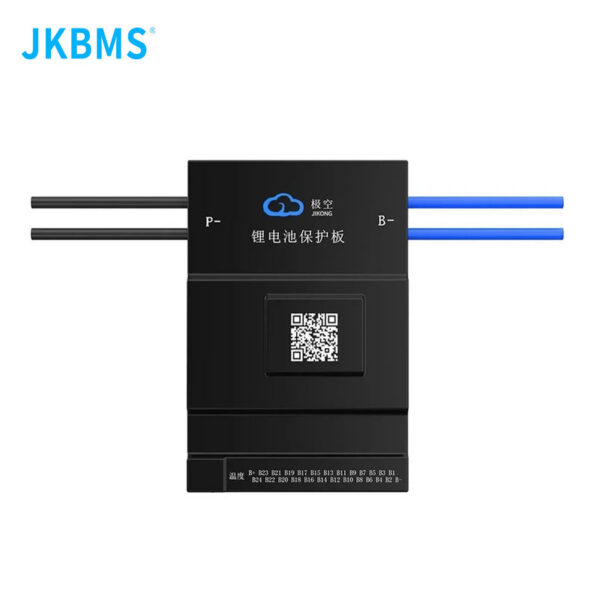

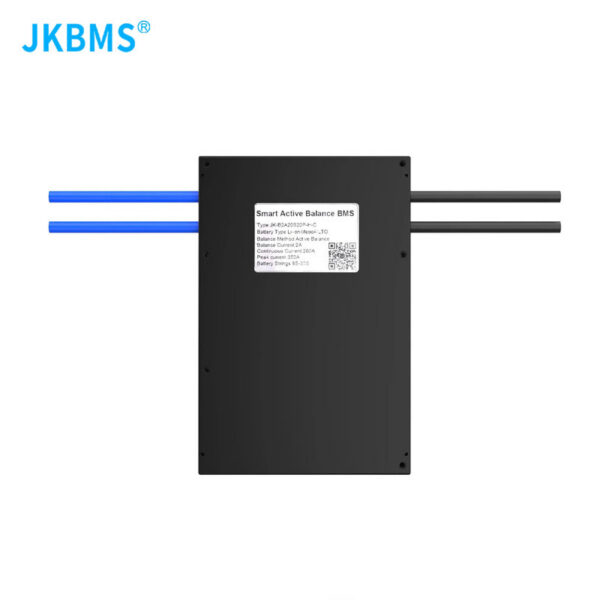

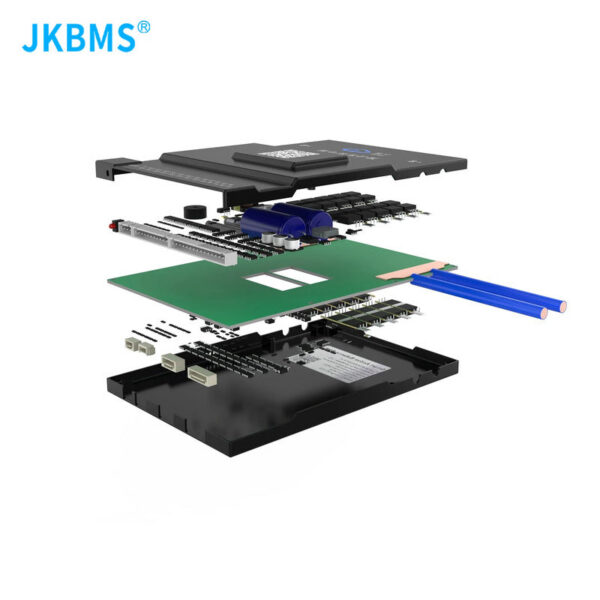

JKBMS B2A20S20P 2A BALANCE CURRENT BMS 200A BT 36V 48V 60V Li-Ion LTO 18650 Lifepo4 Battery Storage Bluetooth Bms

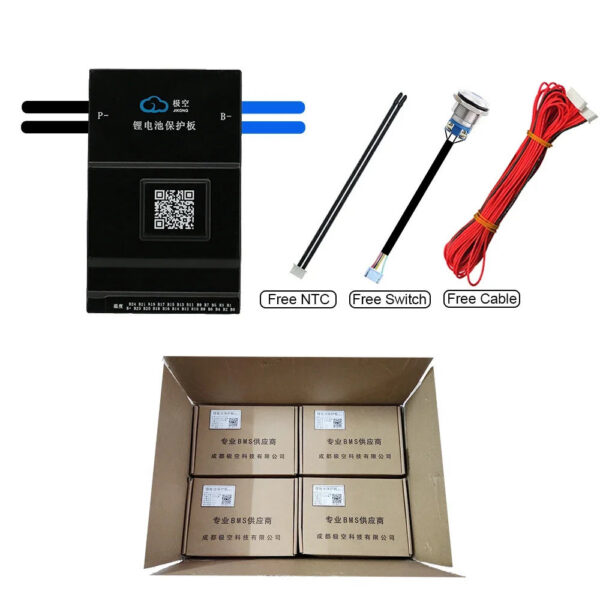

☆PackageBMS{Bluetooth bulit-in}* Temperature sensor(40cm)* Balance Wires(75cm)* Active Switch(15cm)*Heating cable(Only for BMS With Heat Function)H:BMS With Heat FunctionC:BMS With CANBUS chip Bulit-inNOTE: For instructions on heating cables,it detects the temperature of the battery through the BMS,which automatically monitors the charging status of the battery)Heat Function interfaceDescription of heating function:Battery temperature is below low temperature charge protection, turn off charging, turn on heating.Cryogenic charge protection is a parameter that can be set within APPThe heating power depends on the battery voltage and the resistance value of the heating film.Battery voltage U.Heating resistance R.Power equals U*U/RHeating current I=U/R;The maximum I (current) of the board design is 3A.MAX heating power 200W(100W OF B2A20S20P).☆☆

Search (JIKONG BMS) in the APP STORE

Search (JKBMS) in the Google STORE

NOTE:①:Temperature sensor②:RS485 interface(At present, all JKBMS are configured with RS485 function by default)③:LCD interface(At present, all JKBMS are configured with LCD interface by default)④:Heat Function interface(At present, the heating function customized by customers can be accepted)⑤:CANBUS interface ( Needs customized)NOTICE:Protection (Current Sensor Anomaly)This problem exists when the inverter is used, because the current direction is uncertain,The alarm will be displayed. It does not affect the normal use of BMS.the battery fluctuates frequently between charging and discharging,and there are uncertain factors, so this problem occurs.A pure sine wave inverter does not draw a constant current. The current from the battery follows a sine wave shape.The peak current is actually about 40% more than the average current.Then the current will ramp back down to zero at the 1/2 cycle time. At this point, the inverter reverses polarity,and ramps the current back up again, hitting the peak at the 3/4 cycle time. The battery current is positive again,and the inversion happens in the inverter circuit. The the current ramps down back to zero again at the end of the cycle.The process them repeats for every cycle.If you measure with an averaging meter, you will just see a fairly steady current that should be close to the true RMS current.I use a True RMS Fluke meter, and it is able to give a vey accurate reading on this odd waveform.The current reading in the BMS just measures the voltage across a shunt resistor. This reading is only taken periodically,and it is not synced the the changing current from the inverter. It might take a reading at zero current, or at the peak current,but most likely, it will fall somewhere in between.Due to the shape of the wave, the reading tends to bounce a bit above and below the true RMS current.It is not perfect, but over the long term, it is “good enough” for the BMS to calculate the amp hours charged in or discharged out of the battery.This works because if you average the readings over a full hour, the high and low readings will average out.
