Our SFP is compatible with different brands of switches or routers.
Please note in your order: Compatible with Brand+Model.
If you need to customize compatible with HP. An additional 6USD is required.

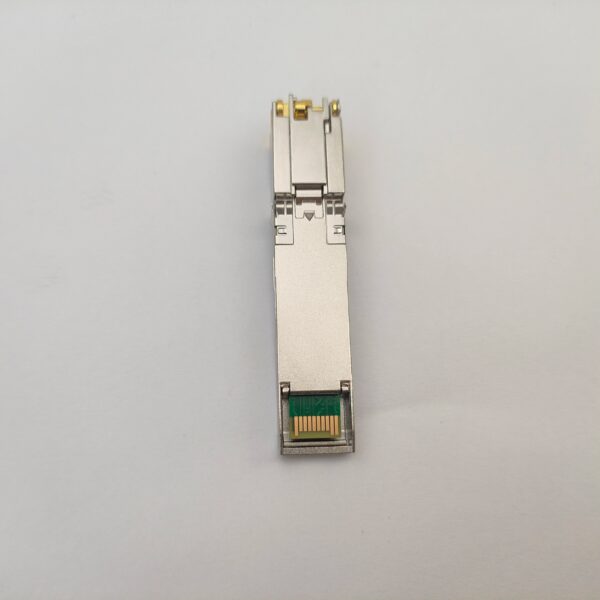

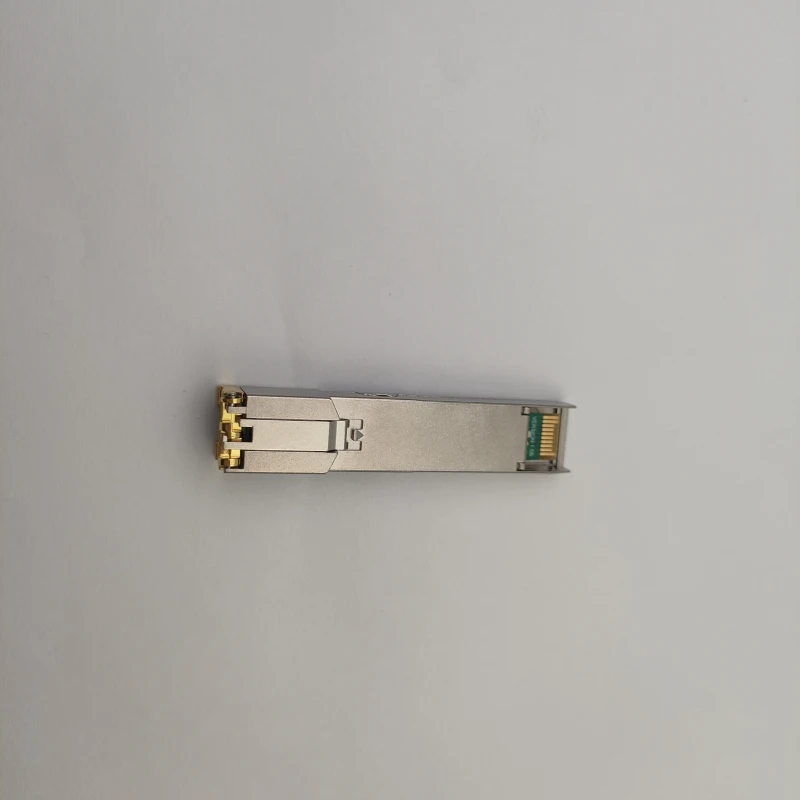

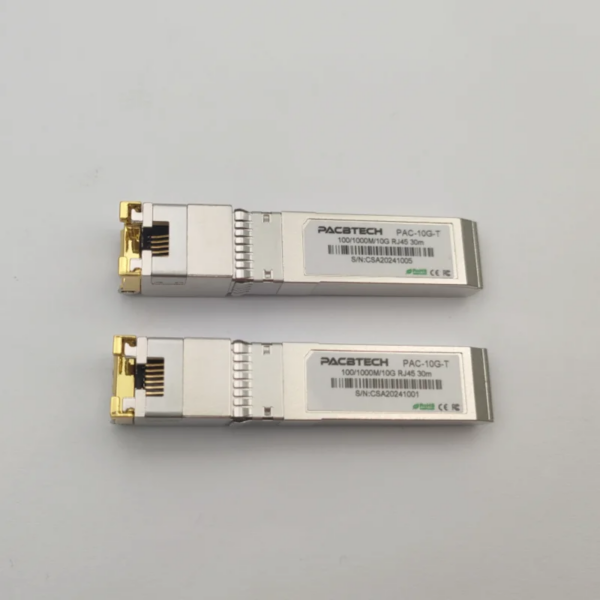

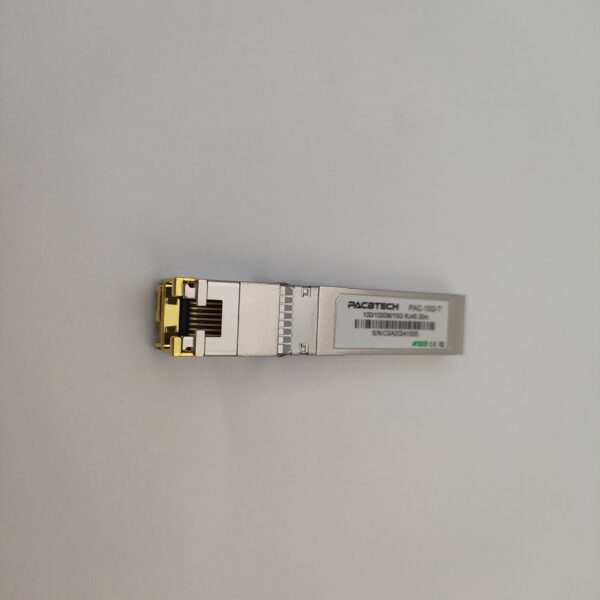

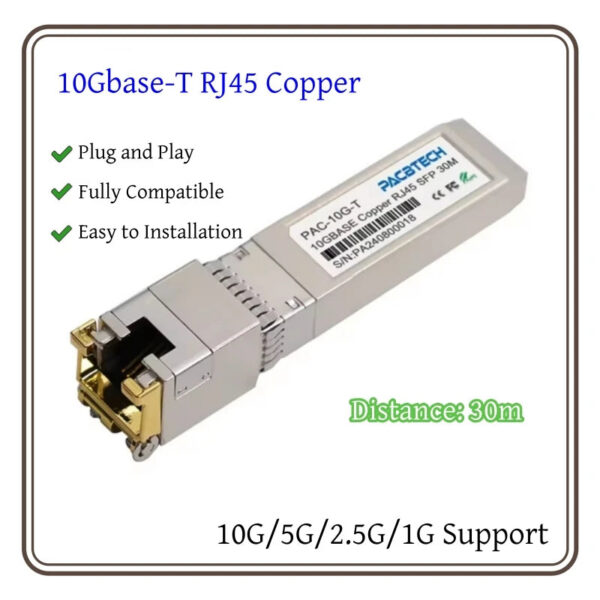

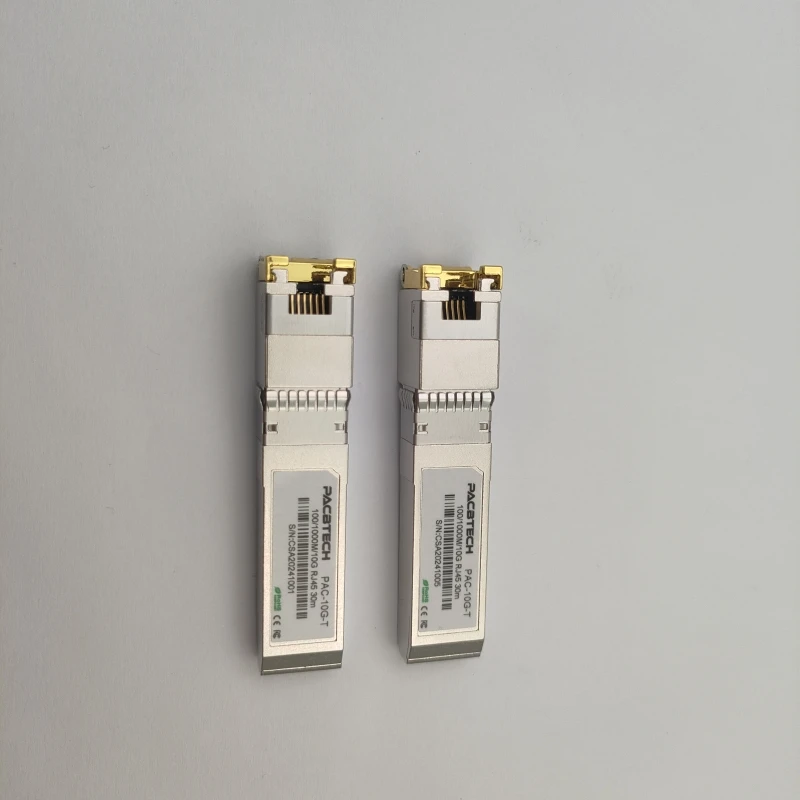

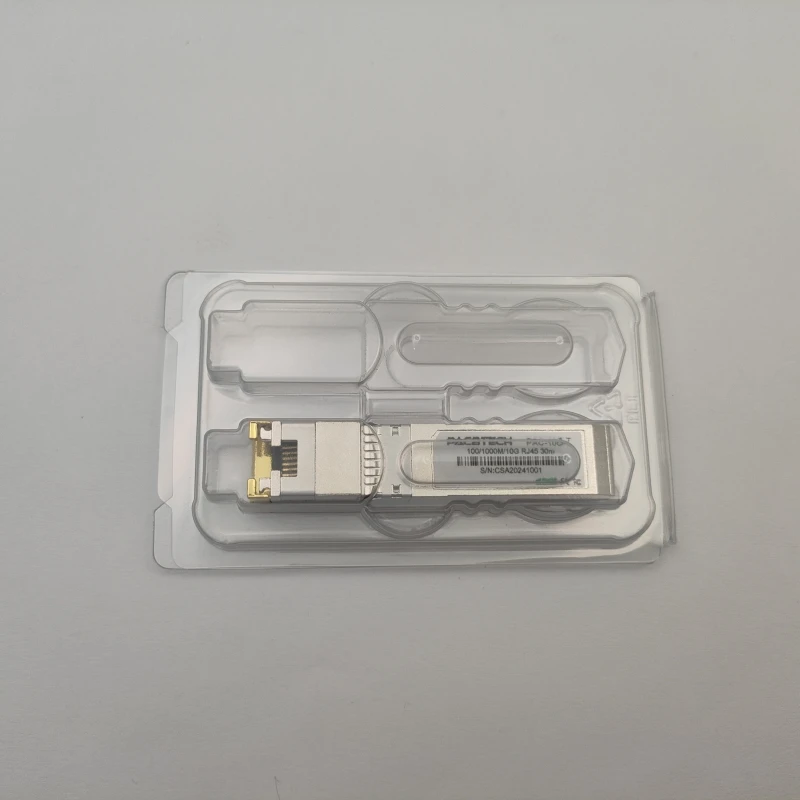

10G copper SFP /RJ45 SFP Module 30Meters
Application
• Hot-pluggable SFP footprint
• Support 10GBASE-T / 5GBASE-T / 2.5GBASE-T / 1000BASE-T / 100BASE-T
• Compact RJ-45 connector assembly Features SFP-10G-T
• Commercial Temperature Range: 0 to 70°C
• Single +3.3V power supply
• 10 Gigabit Ethernet over Cat6a/Cat7 cable
• RoHS compliant and lead-free
Description
The Copper Small Form pluggable (SFP) transceiver is based on SFP multi-sourcing agreement (MSA). It is compatible with the 10GBASE-T and 1000BASE-T standards as specified in IEEE Std 802.3.The 1000BASE-T physical layer IC(PHY) can be accessed via I2C,allowing access to LIMITED PHY settings and features.
10GBASE-T / 2.5GBASE-T / 1000BASE-T standards as specified in IEEE Std 802.3.
10GBASE-T SFP+ copper transceivers use the SFP’s RX_LOS pin for link indication.
If pull up SFP’s TX_DISABLE pin, PHY GBASE-T SFP+ copper transceivers are based on the SFP Multi- Source Agreement (MSA). They are compatible with the 10GBASE-T / IC will be reset.
Supports Links up to 30m using Cat 6a/7 Cable
SFF-8431 and SFF-8432 MSA Compliant
IEEE 802.3az Compliant
Low Power Consumption (2.5W MAX @ 30m)
Fast Retrain EMI Cancellation Algorithm
Low EMI Emissions
I2C 2-Wire Interface for Serial ID and PHY Register Access
Auto-negotiates with other 10GBase-T PHYs
Supports 100/1000Base-T using Cat 5e cable or better
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic Features
Cable Length Measurements
Opens/Shorts
Robust Die Cast Housing
Bail Latch Style ejector mechanism
Unshielded and Shielded cable support
10G BASE-T IEEE 802.3an

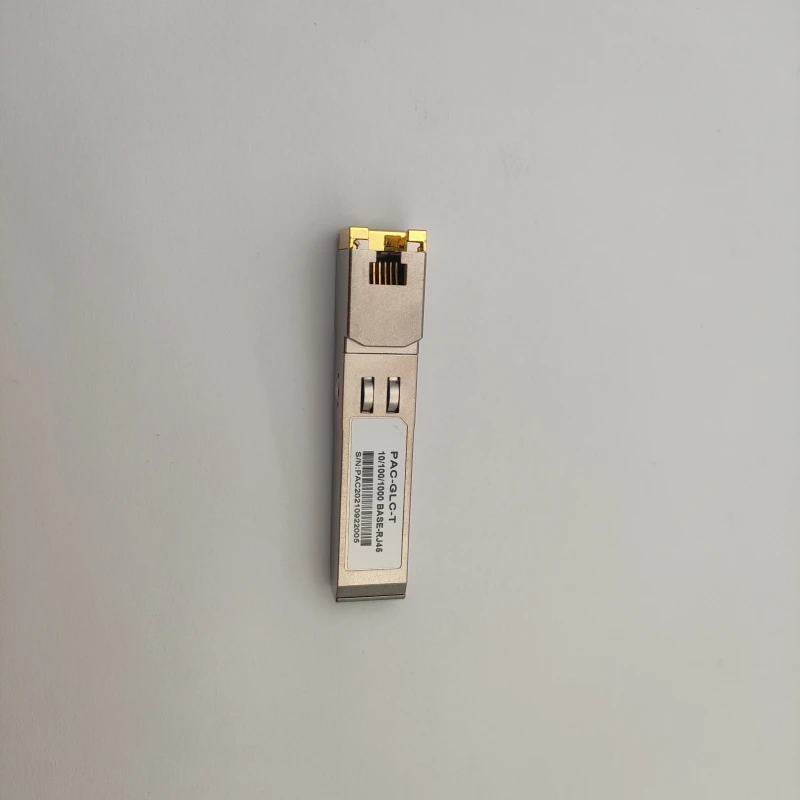

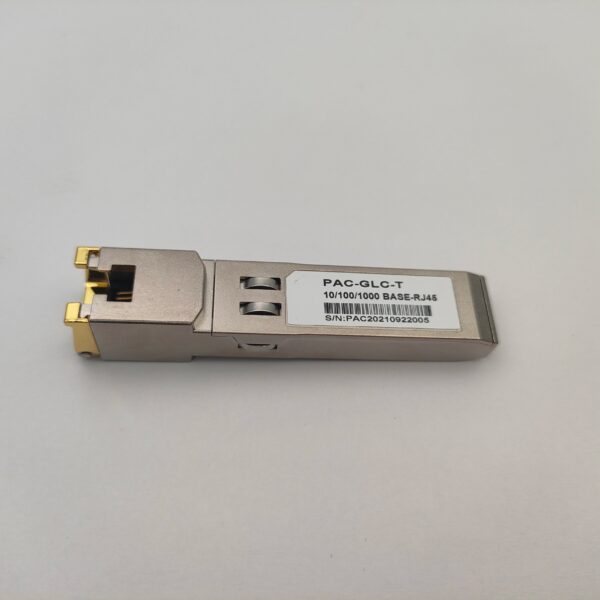

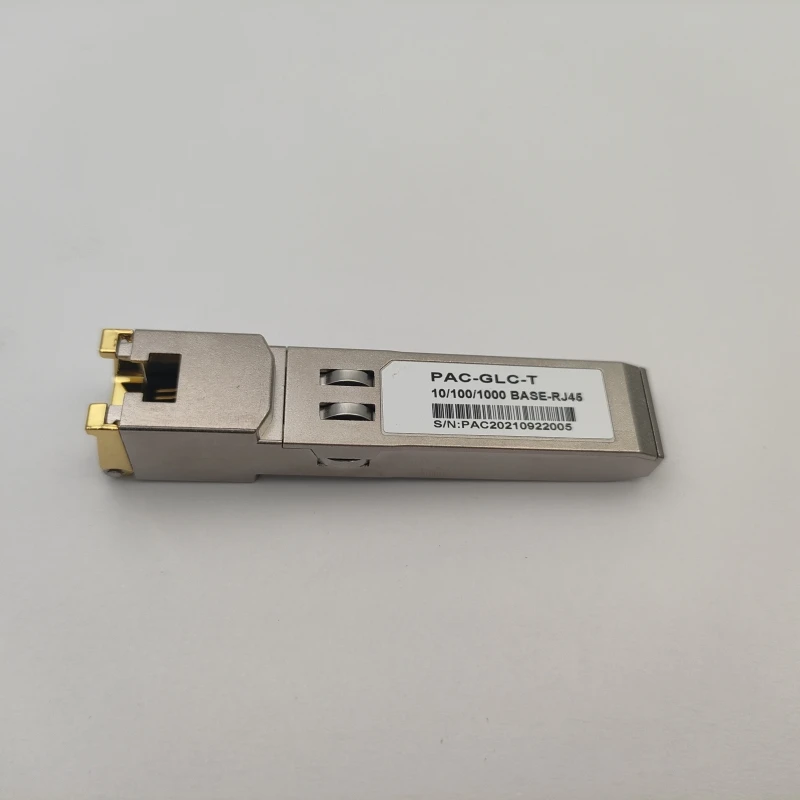

1000M Copper SFP Transceiver
Features
►Up to 1.25Gb/s bi-directional data links
►Hot-pluggable SFP footprint
►Extended case temperature range (0°C to +70°C )
►Fully metallic enclosure for low EMI
►Low power dissipation (1.05 W typical)
►Compact RJ-45 connector assembly
►Access to physical layer IC via 2-wire serial bus
►1000 BASE-T operation in host systems with SERDES interface
►10/100/1000Mbpscompliantin host systems with SGMII interface
Applications
►1.25 Gigabit Ethernet over Cat 5 cable
