FOXEER Reaper Extreme 5.8G 1.8W/2.5W 72CH VTX 25mW 200mW 500mW Adjustable 2-8S 20X20mm for RC FPV Parts

Name
Reaper Extreme 1.8W 2.5W

Input Voltage
9~36V

Output Voltage
5V

Channels
72CH

Power
25mW/200mW/500mW/1W/1.8W, red light flash 1/2/3/4/5 times correspondingly

Pit
Double click to enter

Weight
13g

Mounting Hole
20*20mm M2 2.8mm depth

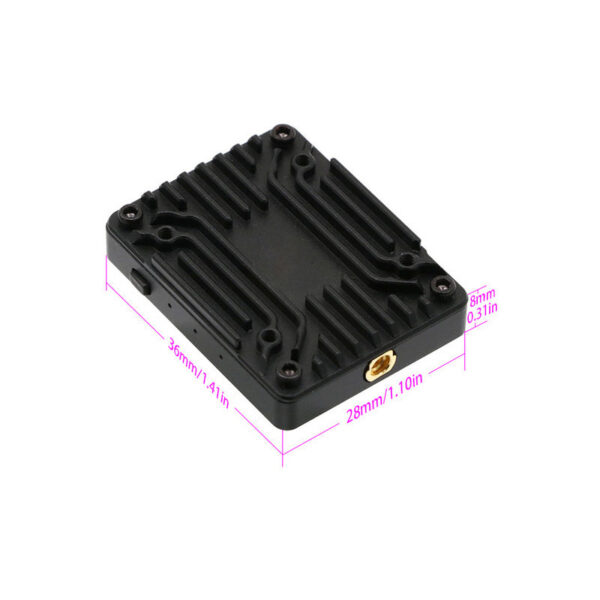

Size
36*27.5*8mm

Consumption
850ma;10V/2.5W

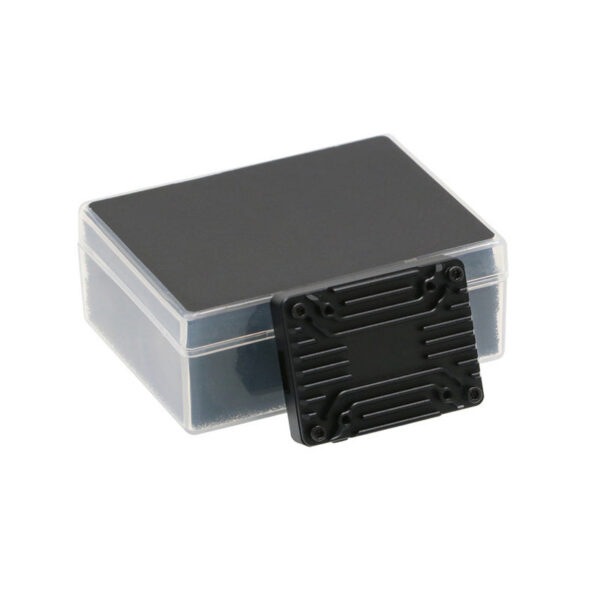

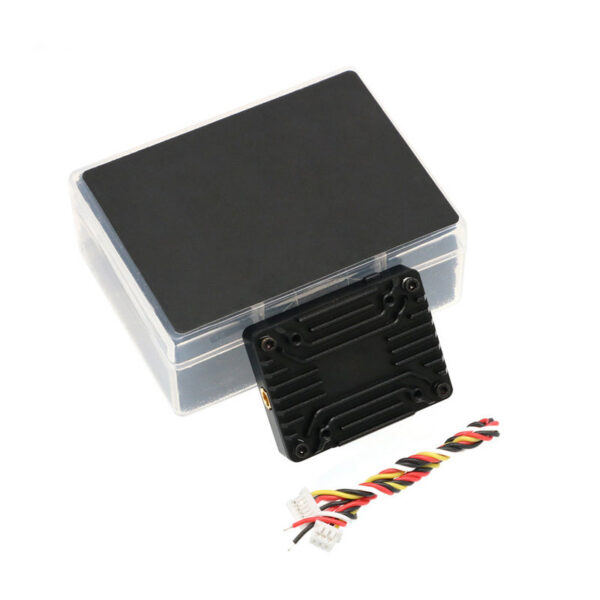

Package Includes

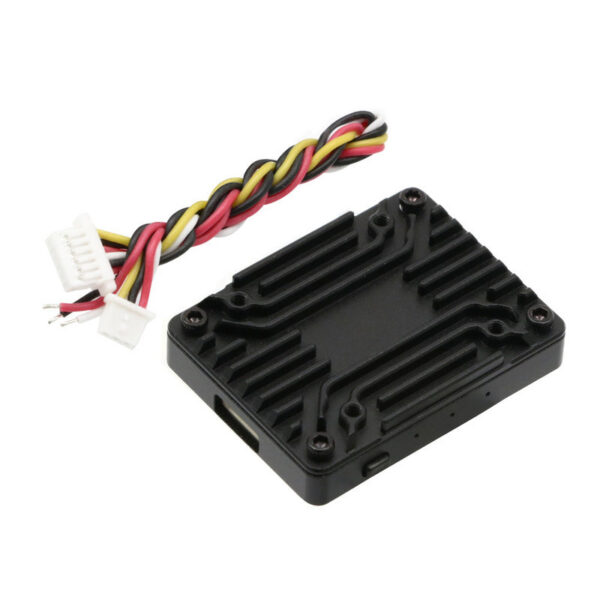

1 x VTx; 1 x silicon cable;

Band
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8

Band A
5865
5845
5825
5805
5785
5765
5745
5725

Band B
5733
5752
5771
5790
5809
5828
5847
5866

Band E
5705
5685
5665
5645
5885
5905

5945

Band F
5740
5760
5780
5800
5820
5840
5860
5880

Band R
5658
5695
5732
5769
5806
5843
5880
5917

Band H
5653
5693
5733
5773
5813
5853
5893
5933

Band L
5333
5373
5413
5453
5493
5533
5573
5613

Band U
5325
5348
5366
5384
5402
5420
5438
5456

Band O
5474
5492
5510
5528
5546
5564
5582
5600

CH

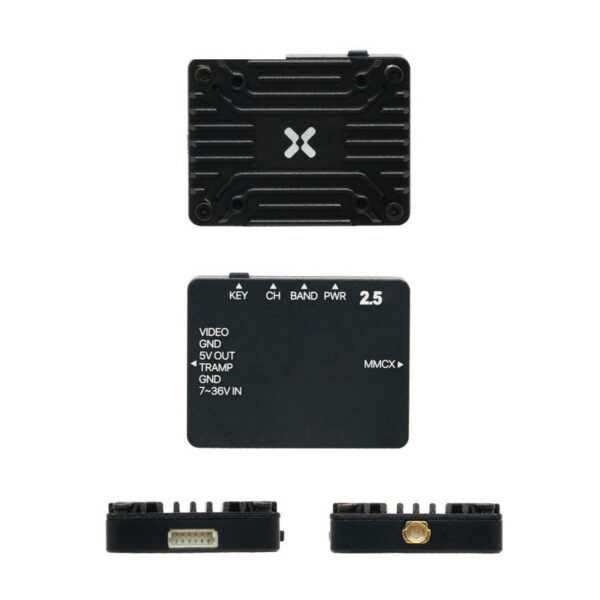

Unlock the frequencies and power levelsLong press the “KEY” button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.PIT Mode On/OffDouble-click the “KEY” button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power.Note:If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.
