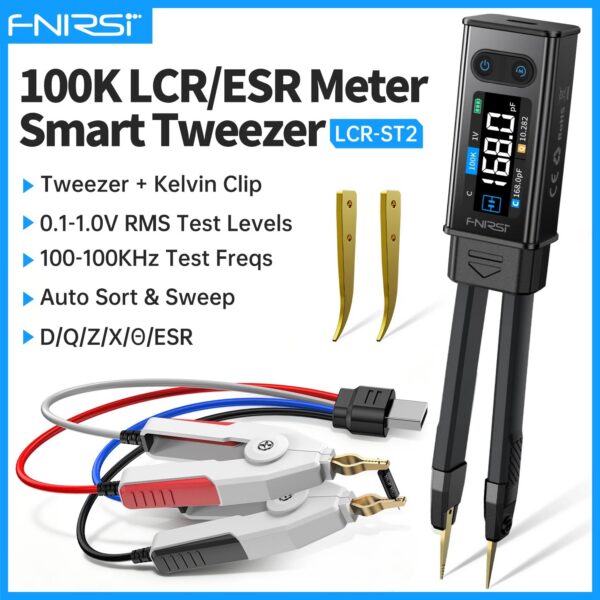

FNIRSI LCR-ST2 2-in-1 Digital Tweezer Bridge LCR ESR Meter SMD Test Kelvin Clip Electronic Component Multifunctional Tester Tool

Battery Included : Yes

High-concerned chemical : None

Operating Mode : Auto Range

Measuring Capacitance Range : 1pF-22mF

Operating Temperature : 0 – 40 ℃

DIY Supplies : Electrical

Measuring Resistance Range : 10mΩ-10MΩ

Certification : CE

Origin : Mainland China

Model Number : LCR-ST2

Measuring Inductance Range : 1uH-10H

Brand Name : FNIRSI

Dimensions : 31×170.7×20.3mm

DC Voltage : 30

Display Type : Digital Display

FNIRSI Model : LCR-ST2

AC Voltage : 30

Model: : LCR-ST2

Display: : 1.47-inch HD color screen

Battery: : 300mAh lithium battery

Charging Port: : Type-C

Dimensions: : 31×170.7 x20.3mm

Auto power-off: : Never/ 5/15/30min

Language: : English / Chinese

Diode forward voltage detection: : ≤0.7V

Voltage range: : ±30V

Frequency sweep: : 100Hz – 100kHz

The LCR-ST2 is the latest generation tweezer-type LCR meter developed by our company. It is a multifunctional and portable testing instrument that supports precise measurement of resistance, capacitance, inductance, and diodes, as well as voltage measurement up to 30 V. Equipped with advanced measurement technology, the LCR-ST2 ensures high accuracy and stability.

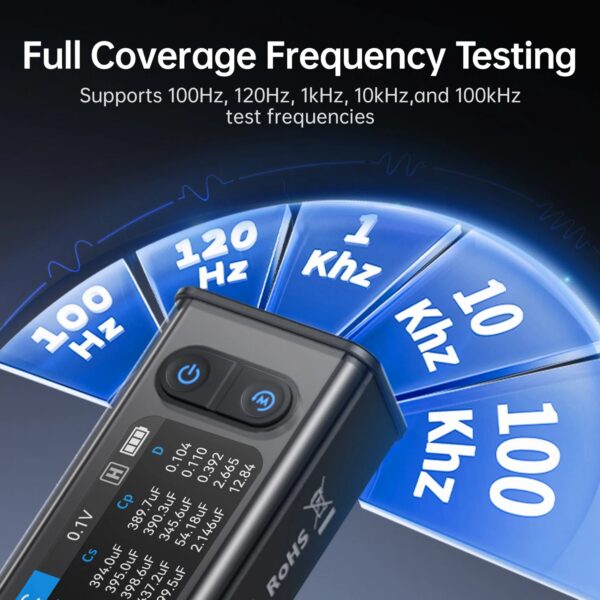

It features a 1.47-inch high-definition color display and magnetic attachment design, enhancing ease of use and portability. A built-in 300 mAh lithium battery provides long operating time, and the instrument supports five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.

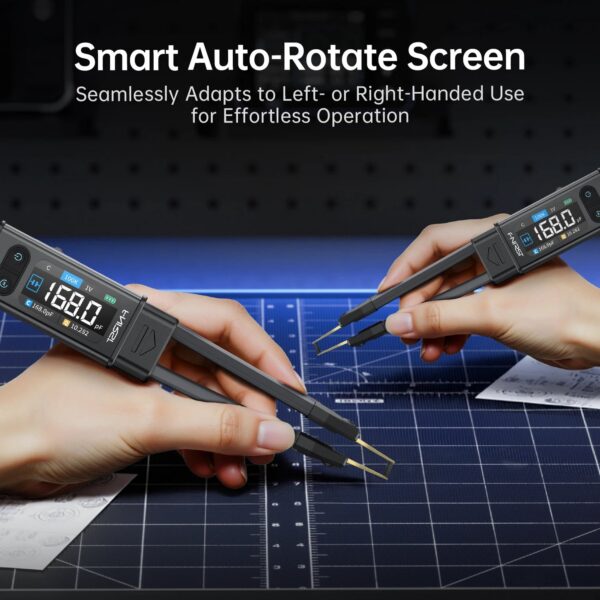

Its unique tweezer-style design is especially suitable for fine operations in confined spaces, allowing quick testing of electronic components. In addition, the LCR-ST2 offers a sweep function that can rapidly scan component parameters across the full frequency range (100 Hz–100 kHz) and obtain multi-frequency data with a single press, enabling accurate component characterization.

The intelligent sorting function automatically classifies and filters components, greatly improving batch testing efficiency. The dual-mode simultaneous display feature allows two measurement modes to be shown on the same screen for direct comparison, making result analysis more intuitive. With its lightweight and portable design, the LCR-ST2 is an indispensable high-efficiency tool for both field engineers and laboratory applications.

Model: LCR-ST2

Display: 1.47-inch HD color screen

Battery: 300mAh lithium battery

Battery Life: Approx. 3 hours

Charging Port: Type-C

Dimensions: 31 × 170.7 × 20.3 mm

Net Weight: Approx. 60.8g

Operating Temperature: 0℃–50℃ (≤75%RH)

Storage Temperature: –20℃–60℃ (≤75%RH)

Auto power-off: Never / 5min / 15min / 30min

Language: English / Chinese

Calibration: Open / Short / Multiple resistor calibration

Adjustable screen brightness & sound

Auto recognition (R/C/L)

Capacitance range: 1pF–22mF

Inductance range: 1µH–10H

Resistance range: 10mΩ–10MΩ

Diode forward voltage detection: ≤0.7V

Voltage range: ±30V

Frequency sweep (100Hz–100kHz)

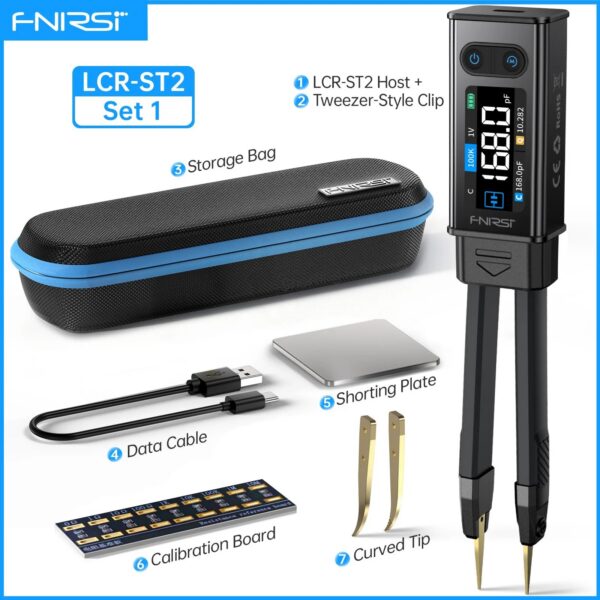

LCR-ST2 Set 1

1. LCR-ST2 Host + Tweezer-Style Clip

2. Storage Bag

3. Curved tip

4. Shorting Plate

5. Data Cable

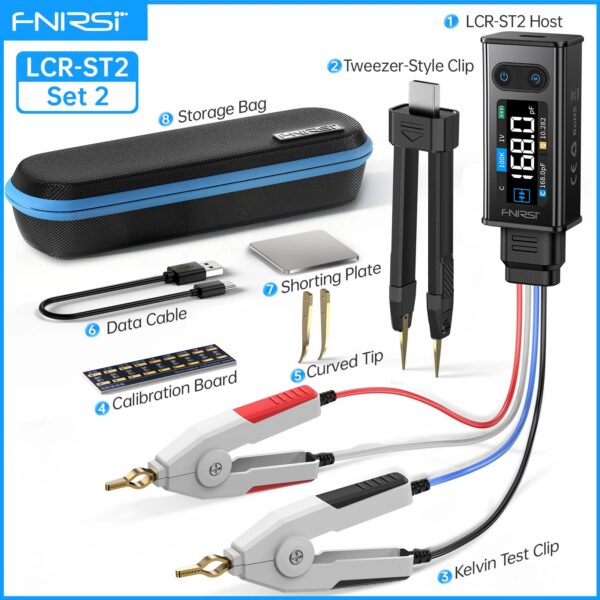

LCR-ST2 Set 2

1. LCR-ST2 Host + Tweezer-Style Clip

2. Storage Bag

3. Curved tip

4. Shorting Plate

5. Kelvin Test Clip

6. Data Cable
