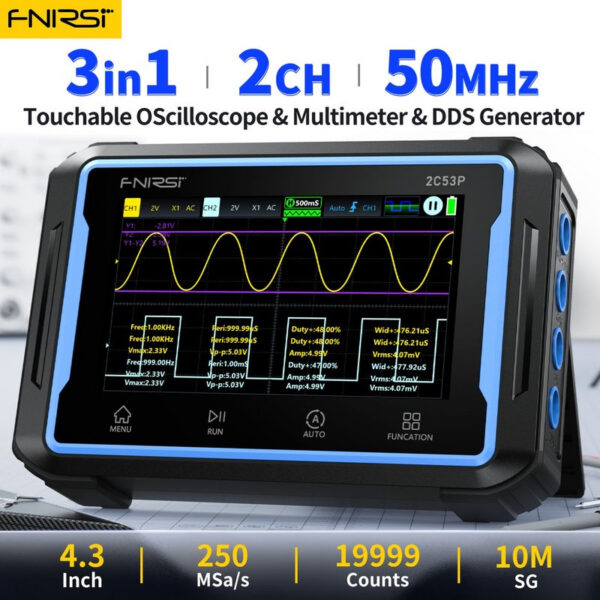

FNIRSI 2C53P Touch Screen Digital Oscilloscope+Multimeter+Signal Generator 3IN1 Dual Channel 50MHZ Automatic Osciloscópio Tools

FNIRSI-2C53P is a three-in-one dual-channel model launched by FNIRSI with comprehensive functions and high practicality, targeting people in the maintenance and R&D industries.


Save and view to facilitate secondary analysis. The multimeter function is 4 and a half digits and 19999 points of true RMS, supporting AC and DC voltage and current measurements, capacitance, resistance,
With measuring functions such as diode, continuity, temperature, etc., it is an ideal multi-functional instrument whether used by professionals, factories, schools, enthusiasts or families. Inside
Set up a DDS function signal generator, which can output 12 kinds of function signals. The maximum output of the signal generator is 10MHz, with a step of 1Hz; output frequency, amplitude, and duty cycle
Adjustable. It uses a 4.3-inch 480*272 resolution touch display and a built-in 4000mAh rechargeable lithium battery with a standby time of up to 4 hours. With small size
Provide users with more and stronger practical functions, while also having good portability.

Oscilloscope

Channel：Dual channel

Analog bandwidth：50MHz

Real-time sample rate：250MSa/s
Storage depth：Up to 64kByte
Input mpedance：1MΩ
Time base range：10ns/div – 10s/div
Vertical sensitivity：10mv/div – 10v/div
Vertical resolution8 bits
Maximum measured voltage：±400V
Probe：1x/10x
torage space：13
Bandwidth limitSupport 20MHz limit
Trigger mode：AUTO/Normal/Single

Trigger level range：8 cells (positive/negative)

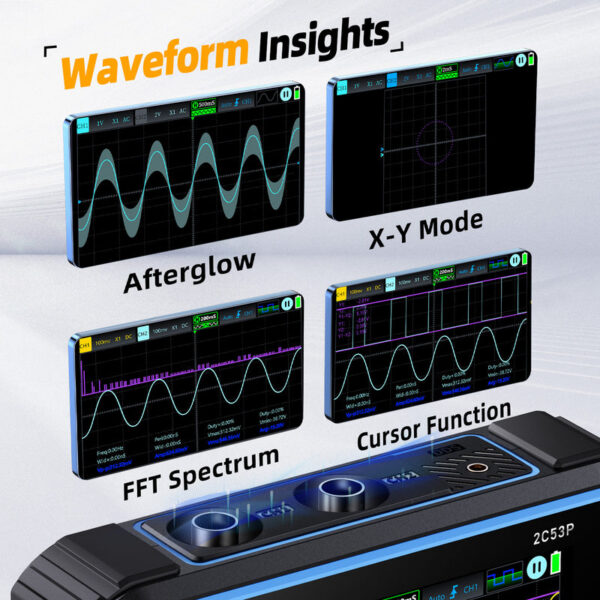

Waveform display mode：XY/YT/Scroll

Measured data：Period, frequency, peak-to-peak value, maximum value, minimum value, Average value, effective value, amplitude, duty cycle, pulse width
Math alculations：1+2、1-2、1*2、1/2、-1、-2、|1|、|2|、FFT
Save waveform screenshot：Yes
Export waveform images from computer：Yes

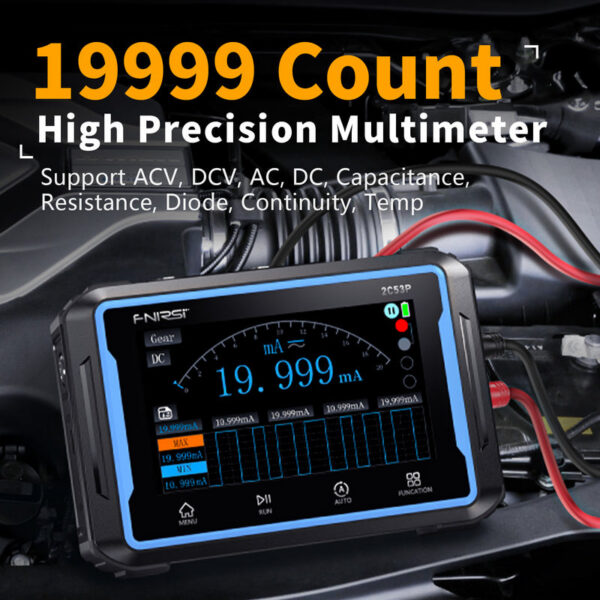

Multimeter
DC Voltage：1.9999V/19.999V/199.99V/1000.0V
AC voltage：1.9999V/19.999V/199.99V/750.0V
DC current：19.999mA/199.99mA/1.9999A/9.999A
AC current：19.999mA/199.99mA/1.9999A/9.999A
Resistance：19.999MΩ/1.9999MΩ/199.99KΩ/19.999KΩ/1.9999KΩ/199.99Ω
Capacitance：999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF/9.999mF/99.99mF
Temperature：(-55~1300℃)/(-67~2372℉)
Diode：Yes
Continuity test：Yes

Signal Generator
Channel：Single channel
Frequency：0-10MHz（Sine wave: 10MHz, other waveforms 5MHz）
Amplitude：0.1V-3.0V
Square wave duty cycle0-100%
Signal type：sinusoidal wave, square wave, sawtooth wave, half wave, full wave, positive step wave, negative step wave, DC signal, exponential rise, exponential fall, multi-audio, and sync pulse

Basic Parameters

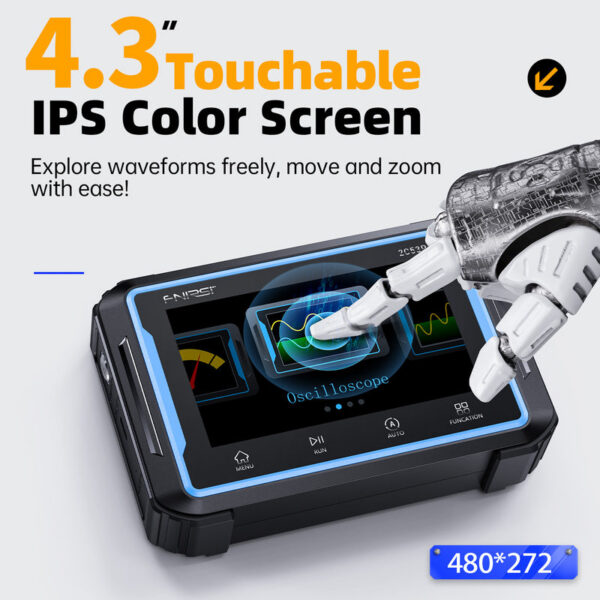

Screen size & resolution：4.3 Inch (480*272 pixels)
Screen material：Surface tempered glassSurface tempered glass + touch screen made of glass GLASS + IPS color screen

Power supply：TYPE-C（5V/2A）
Battery：4000mAh lithium battery
Language：Chinese, English, Pyccкий, にほんご, español, Português, Deutsch, 한국인
Product size：about 145x98x35mm
Product net weight：about 360g

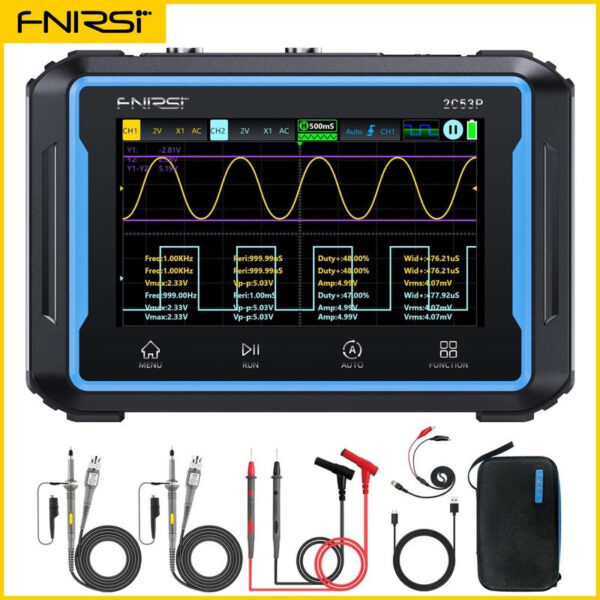

2C53P Standard
1. 2C53P（2CH Touchable Oscilloscope Multimeter 3in1）*1
2. P6100 Probe *2
3. Multimeter probe *1
4. Alligator clip probe *1
5. Data cable *1
6. Product Manual *1
