EzCAP294 4K PCI-E Video Capture Card 1080P60P HDMI Output ,Full HD Recorded UVC Plug and Play Support OBS Studio Live Streaming

EzCAP294 4K PCI-E Video Capture Card 1080P60P HDMI Output ,Full HD Recorded UVC Plug and Play Support OBS Studio Live Streaming

PCI-e Game Capture and Live, which can capture and broadcast game video in real time, up to 1080p60 resolution, is the best choice for your PCI-e card to capture live games.

Usually professional gaming players always use desktop computers, and there is enough space to provide more professional equipment installation locations and heat dissipation. Therefore, PCI-e Game Capture and Live card came into being. Compared with USB devices, it is faster and more stable. It is tightly built into the host computer and does not take up any extra space.

Extra HDMI OUT for Playing game on Big Display

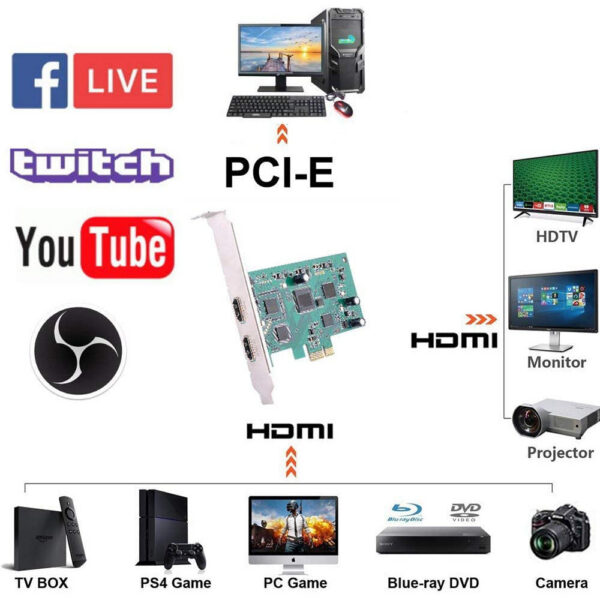

PCI-e Game Capture and Live card still offers one HDMI OUT connector, allows you connect game video to big display or other video devices.

Multiple Devices on One Host

Supports multiple devices on one host. It means you can install four units of ezcap294 devices in one computer. We have made a special DIP switch on the device. With the specially developed firmware, the device can be considered by the system as a device name with a different serial number, which is convenient for users to manage and distinguish the device.

FEATURE

. Capture HDMI video in 1080p60 resolution.

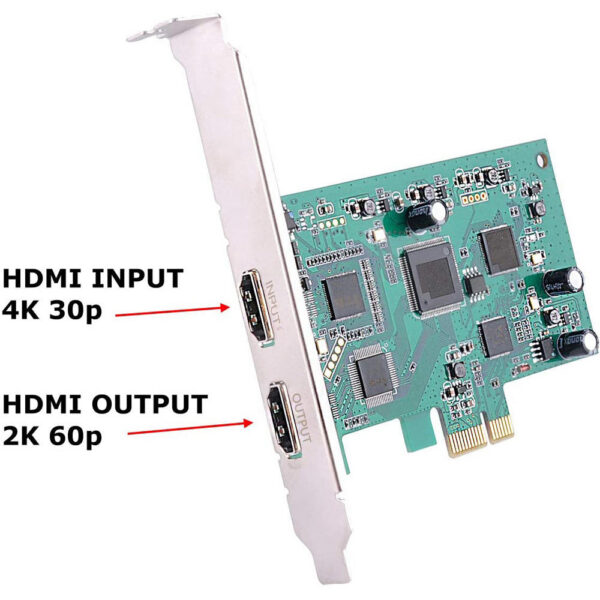

. Supports 4K30 HDMI input, and 1080p60 pass-through.

. Supports most of trird party video capture softwares.

. Mutiple devices on one host, can connect up to 6 devices on one computer.

SPECIFICATIONS

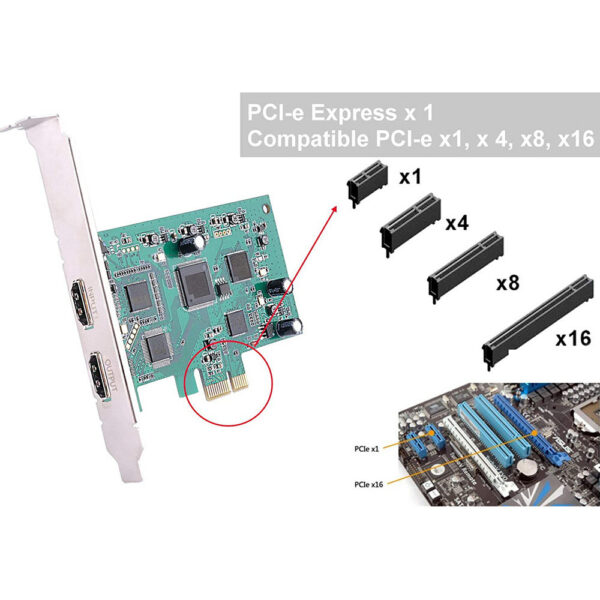

. Host Interface: PCI – e

. Video Input: HDMI

. Audio Input: HDMI

. Video Output: HDMI

. Audio Output: HDMI

. Resolution: 720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p), 1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p), 1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p). 3840 x 2160(30) (only for input)

. Software Compatibility: OBS Studio (windows,OS X); Windows Media Encoder (Windows); Adobe Flash Media Live -Encoder (Windows, OS X); Real Producer Plus (Windows); VLC (Windows, OS X, Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows,OS X); vMix(Windows); Potplayer(Windows) …

. Package Contents: Game Capture card, USB 3.0 cable, Driver CD, Manual

. Dimensions / Weight: 105(L) x 90(W) x 21(H) mm, 50g
