EO-UNO R3 Project Most Complete Starter Tutorial Compatible with Arduino IDE (63 Items) DIY Electronic Kit

















Notice

The original battery from the kit was removed.



So sorry for the inconvenience caused and we’d appreciate your understanding.



Product description

1、More than 200 components, this is the most complete starter kit you will find. Great value starter kit with 63 kinds of electronic components.

2、Has all the components you need and a free PDF tutorial (more than 30 lessons) to show you how to use them. All code to use the modules is included on the CD.

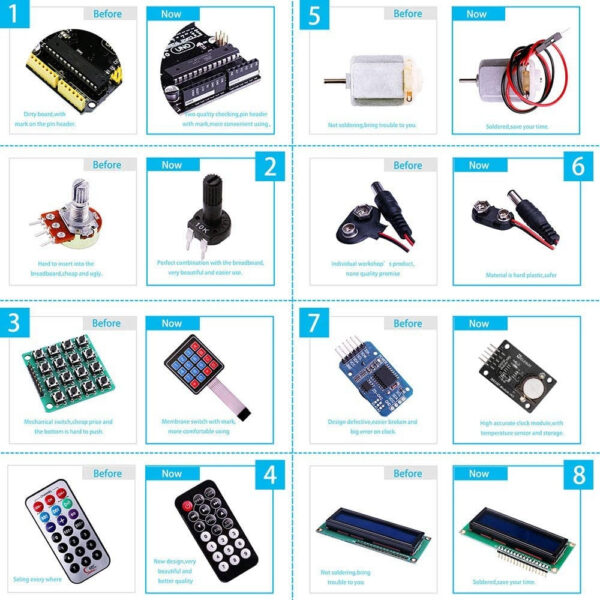

3、All the modules come soldered so they are easy to wire up.

4、Includes ELEGOO R3 controller board and USB cable, 100% compatible with Arduino IDE Official R3, Official kit.





Starter kit that everyone can use to learn electronics





What about novice users who don’t have any electronics knowledge? Fear not amigo. Just follow our tutorial enclosed and step by step you will come to realize that learning electronics is more fun than you ever expected with this amazing sensor kit.



It’s a good choice and perfect gift for your friends, family or kids who are obsessed with electronics or robotics to take their first steps on electronics journey.



The most complete starter Kit with high quality components and sensors





Besides, we offer other over 60 kinds of components and sensors from small parts like LED diodes, resistors and potentiometer to big parts like LCD1602, RFID module and 830 tie-points breadboard, which meet your demands for your different projects either it is simple or complex.







74HC595 Shift Register and LEDs

74HC595 is a Serial to Parallel Converter which has eight outputs (perfect) and three inputs that you use to feed data into it a bit at a time.



This chip makes it a little slower to drive the LEDs (you can only change the LEDs about 500,000 times a second instead of 8,000,000 a second) but it’s still really fast, way faster than humans can detect, so it’s worth it.







LCD1602 Display module

LCD1602 module is a display that has an LED backlight and can display two rows with up to 16 characters on each row. You can see the rectangles for each character on the display and the pixels that make up each character. The display is just white on blue and is intended for showing text.







DC Motors and L293D Transistor





L293D is quadruple high-current half-H drivers and designed to provide bidirectional drive currents of up to 1 A at voltages from 4.5 V to 36 V. The L293D is also designed to provide bidirectional drive currents of up to 600-mA at voltages from 4.5 V to 36 V and drive inductive loads such as relays, solenoids, dc and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.

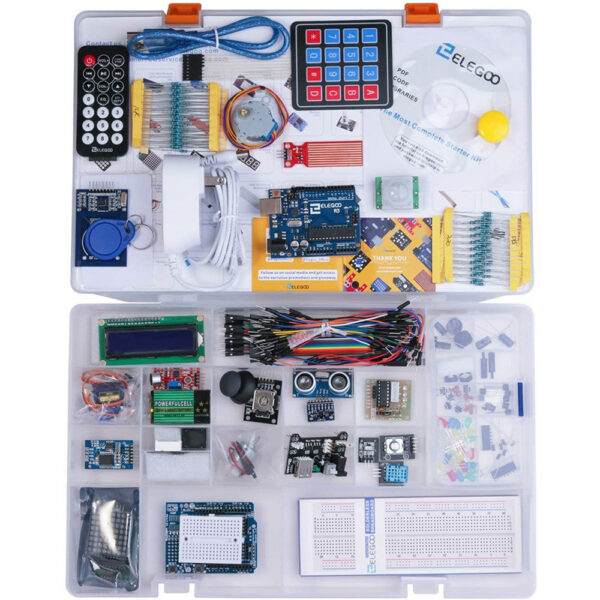

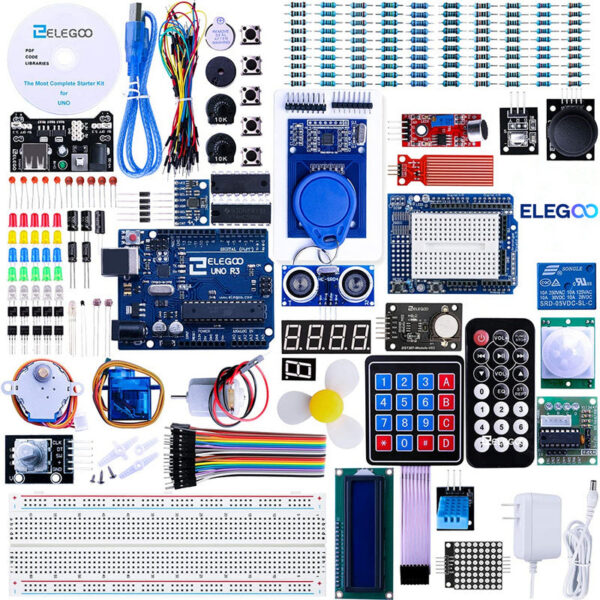

What is in the box(no battery)

1pcs Keypad Module

1pcs 5V Relay

1pcs IR Receiver Module

1pcs UNO- R3 Controller Board

1pcs Breadboard

1pcs Servo Motor (SG90)

1pcs Stepper Motor

1pcs ULN2003 Stepper Motor Driver Board

1pcs Prototype Expansion

1pcs Power Supply Module WARNING: Pls. do not use the voltage higher than 9V

1pcs HC-SR501 PIR Motion Sensor

1pcs Ultrasonic Sensor

1pcs GY-521 Module

1pcs 3V Servo Motor

1pcs MAX7219 Module

1pcs Remote

1pcs 9V 1A Power Supply

1pcs 65 Jumper Wire

1pcs Water Lever Sensor

1pcs USB Cable

1pcs RC522 RFID Module

10pcs Resistor (10R)

10pcs Resistor (100R)

30pcs Resistor (220R)

10pcs Resistor (330R)

10pcs Resistor (1K)

10pcs Resistor (2K)

10pcs Resistor (5K1)

10pcs Resistor (10K)

10pcs Resistor (100K)

10pcs Resistor (1M)

10pcs Resistor (1M)

20pcs Female-to-male DuPont Wire

5pcs White LED

5pcs Yellow LED

5pcs Blue LED

5pcs Green LED

5pcs Red LED

1pcs RGB LED

5pcs 22pf Ceramic Capacitor

5pcs 104 Ceramic Capacitor

2pcs Photo resistor

1pcs Thermistor

5pcs Diode Rectifier (1N4007)

2pcs Electrolytic Capacitor (10UF 50V)

2pcs Electrolytic Capacitor (100UF 50V)

5pcs NPN Transistor (PN2222)

5pcs NPN Transistor (S8050)

1pcs Tilt Switch

5pcs Button (small)

1pcs 1 digit 7-segment Display

1pcs 4 digit 7-segment Display

1pcs Sound Sensor Module

1pcs LCD1602 Module ( with pin header)

1pcs IC L293D

1pcs IC 74HC595

1pcs Active Buzzer

1pcs Passive Buzzer

1pcs RTC Module

1pcs DHT11 Temperature and Humidity Module

2pcs Potentiometer

1pcs Rotary Encoder Module
