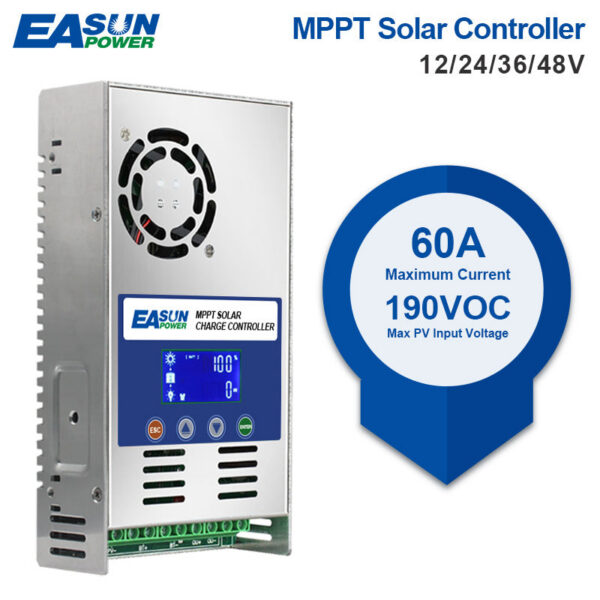

EASUN POWER 60A MPPT Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery





EASUN POWER 60A MPPT Solar Charge and Discharge Controller 12V 24V 36V 48VAuto for Max PV 190VDC Lead Acid Lithium Battery


Features：
100% MPPT controller


Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance

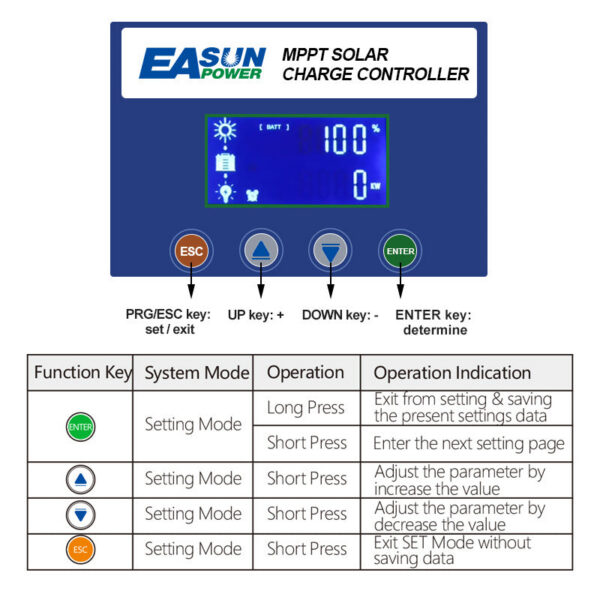

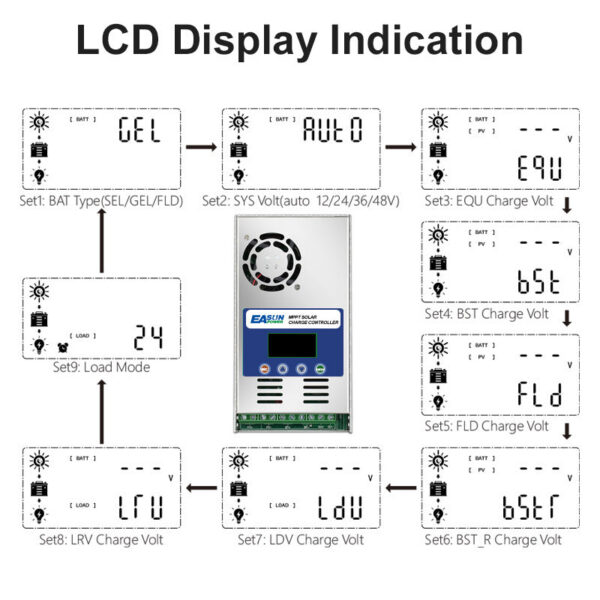

Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

you can Put two pieces60Ain parallel ,So total isMPPT 120A
Support unlimited parallel connection




Item

Parameter

Models

ICharger MPPT 6048

Chargingmode



SystemVoltage

12/24/36/48/Auto

MaxPVInputPower

720W/12V; 1440W/24V2160W/36V; 2880W/48V

MaxPVInput Voltage

190Voc


Batteryvoltageautomaticrecognition

12Vsystem(DC8.7V-DC15.5V)；24Vsystem(DC16V-DC31V)
36Vsystem(DC33V-DC41V)；48Vsystem(DC42V-DC64V)

Overchargingprotectionvoltage

12V system (16V)；24V system (32V)36Vsystem(48V)；48Vsystem(64V)

Limitedcurrentprotection

61A

Maxefficiency

≥98.1%

PVutilization

≥99%

AutoTemperatureCompensation

-3mV/2V/ºC

ProtectionFunction

Temperatureprotection

75℃

Fan-ontemperature

>45℃

Fan-offtemperature

<40℃ Properties Size(mm) 214x115x50 Netweight(Kg) 1.1 Grossweight(Kg) 1.2 Electromagneticcompatibility AccordtoEN61000,EN55022,EN55024 Enclosure IP21 Environmentaltemperature -20℃~+55℃ Storagetemperature -40℃~+75℃ BatteryParameters BatteryType SystemVolt EQU BST FLD BST_R LRV LDV GEL Auto 14.2V 14.2V 13.8V 13.2V 12.6V 12.0V SEL Auto 14.6V 14.4V 13.8V 13.2V 12.6V 12.0V FLD Auto 14.8V 14.6V 13.8V 13.2V 12.6V 12.0V USE Auto/12/24/36/48V Definedbyusers           LI 12/24/36/48V --- Definedbyusers --- --- Definedbyusers   ThemaximumPVinputpower(ThetotalpowerratedofPVcan’tbeoverthiswattthatwillbreakthe controller.)   12Vsystem(360W)   12Vsystem(480W)   12Vsystem(600W)   12Vsystem(720W) 24Vsystem(720W) 24Vsystem(960W) 24Vsystem(1200W) 24Vsystem(1440W) 36Vsystem(1080W) 36Vsystem(1400W) 36Vsystem(1800W) 36Vsystem(2100W) 48Vsystem(1440W) 48Vsystem(1700W) 48Vsystem(2200W) 48Vsystem(2800W)
