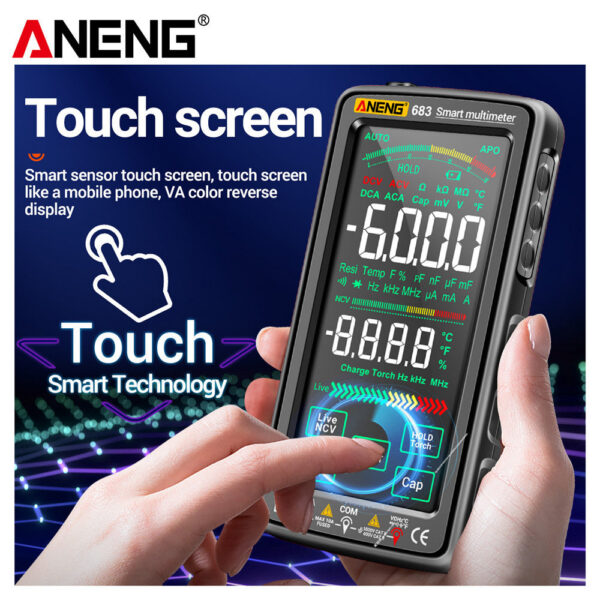

ANENG 683 Smart Multimeter High-end Touch 6000 Counts Multimetro Test Rechargeable Multitester AC/DC Voltage Tester Current Tool

ANENG 683 High-end Touch Smart MultimeterIntroduce:This device is a 3 5/6 digital multimeter with stable performance and realiable quality.The meter adopts LCD display screen with analog bar display.Users in the process of use,truly achieve  continuous power operation,do not need to turn the dial to select functions.According to the input ac/DC voltage/resistance will be automatically identified and measured.The meter is equipped with a high-capacity rechargeable batteries with full function and accurate measurement.The multimeter is an ideal tools for laboratory,factory,radio enthusiasts and household.Summary:Manual Range and Auto RangeFull range overloaded protectectionThe maximum voltage allowed between the measuring terminal and ground:1000V DC or 750V ACFuse Protection:uA/mA Display:6000 Counts LCD monitor with analog barBattery Type:3.7V/2800mA rechargeable batterySpecification:DC Voltage:

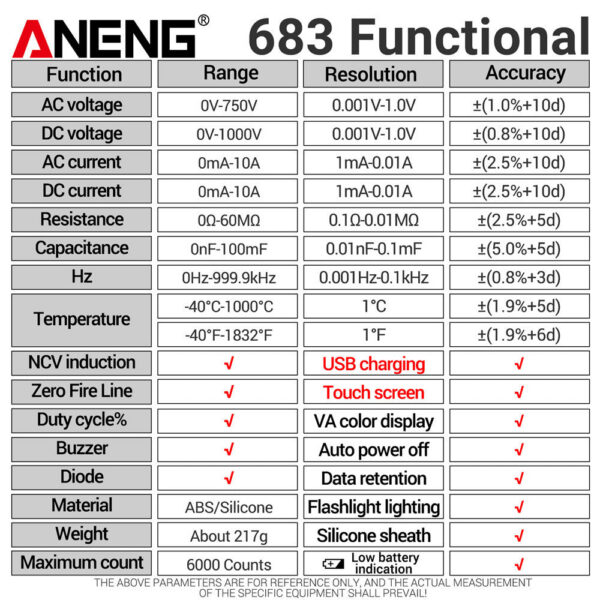

Measuring Range

Resolution

Accuracy

6V/60V

0.001V/0.01V

+-(0.5% readings+3digits)

600V/1000V

0.1V/1.0V

+-(0.8% readings+10digits)

AC Voltage:

Measuring Range

Resolution

Accuracy

6V/60V

0.001V/0.01V

+-(0.8% readings+3digits)

600V/750V

0.1V/1.0V

+-(1.0% readings+10digits)

AC and AC Current

Measuring Range

Resolution

Accuracy

6000mA

1mA

+-(1.0% readings+5digits )

10A

0.01A

+-(2.5% readings+10digits )

Resistance

Measuring Range

Resolution

Accuracy

600Ω/6kΩ/60kΩ/600kΩ

0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ

+-(0.8% readings+3digits)

6MΩ

0.001MΩ

+-(1.2% readings+3digits)

60MΩ

0.01MΩ

+-(2.5% readings+5digits)

Capacity

Measuring Range

Resolution

Accuracy

60nF/60nF/6uF/60uF/600uF/6mF

0.01nF/0.1nF/0.001uF/0.01uF/0.1uF

+-(4.0%Readings+20 digits)

60mF

0.01mF

+-(5.0%Readings+5 digits)

100mF

0.1mF

for reference

Frequency

Measuring Range

Resolution

Accuracy

9.999Hz/99.99Hz/999.9Hz

0.001Hz/0.01Hz/0.1Hz

+-(0.8% readings+3digits)

9.999kHz/99.99kHz/999.9kHz

0.001kHz/0.01kHz/0.1kHz

+-(0.8% readings+3digits)

Temperature

Measuring Range

Resolution

Accuracy

-40℃-300℃

+-(1.0%+4d)

1℃

301℃-1000℃

+-(1.9%+5d)

1℃

-40 °F -600 °F

+-(1.2%+6d)

1°F

601 °F -1832 °F

+-(1.9%+6d)

1°F

Diode Test

Yes

Circuit on/off Test

Yes

Data Hold

Yes

Automatic power off

Yes

Torch

Yes

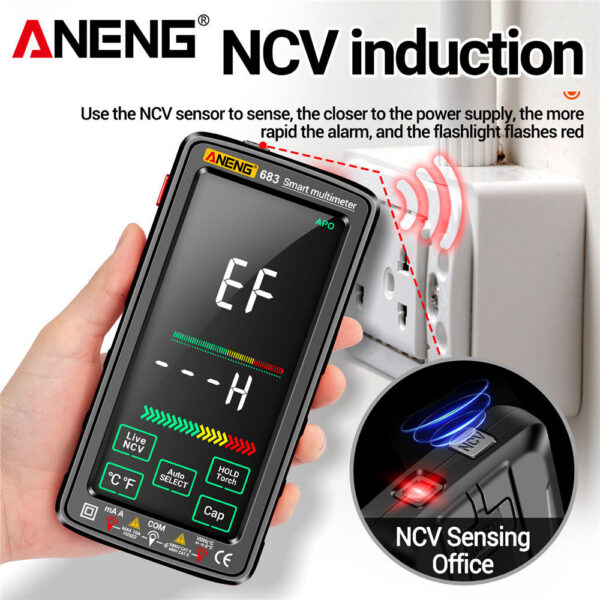

NCV Test

Yes

Buzzer

Yes



Yes

Package Included:As the picture showed
