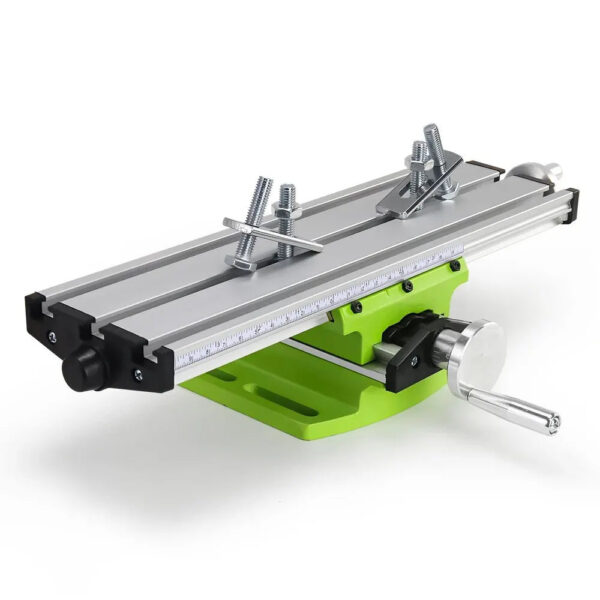

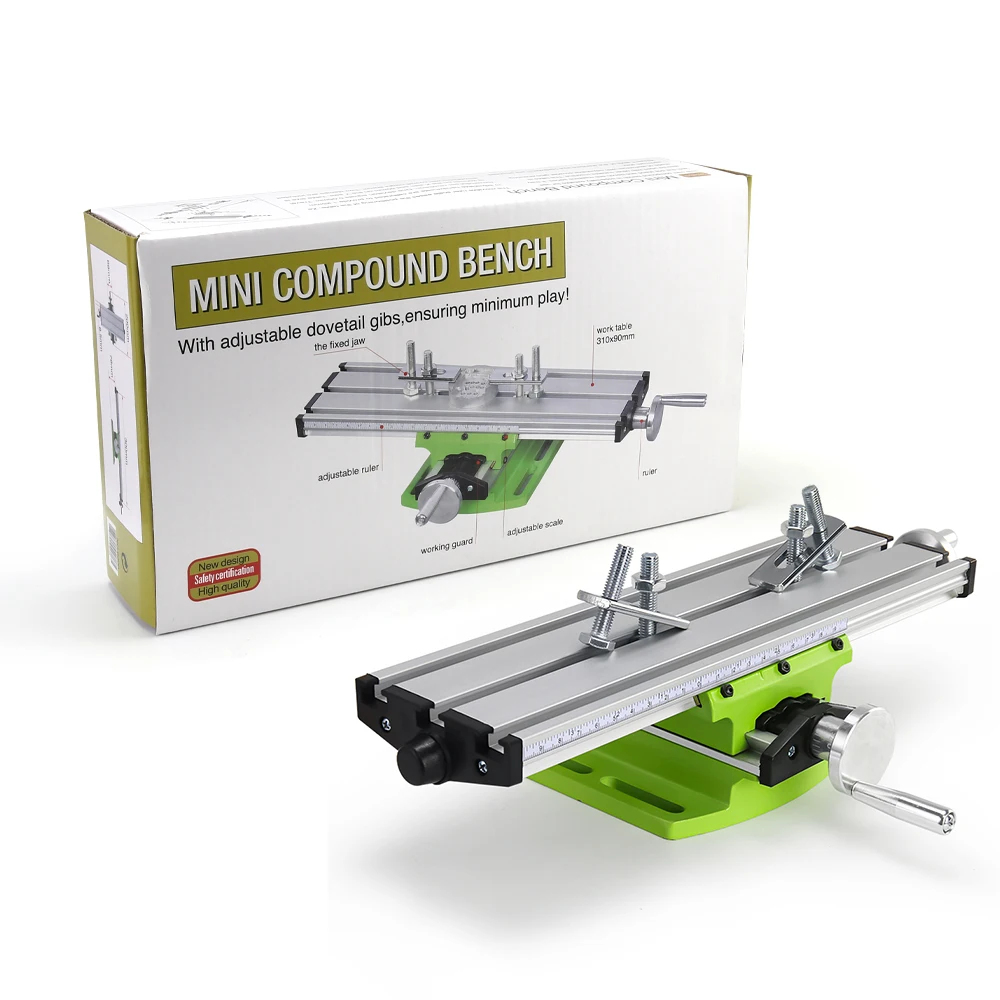

ALLSOME BG-6300 Compound Table Working Cross Slide Table Worktable for Milling Drilling Bench Multifunction Adjustable X-Y

Specification:

Model: BG6300
Table size: 300 * 90mm
X -axis travel: 200mm
Y-axis travel: 50mm
X Y-axis scale adjustment:
1 circle = 1.25mm
A subdivision marks= 0.05mm
The lead screws are M8X1.25

Features:

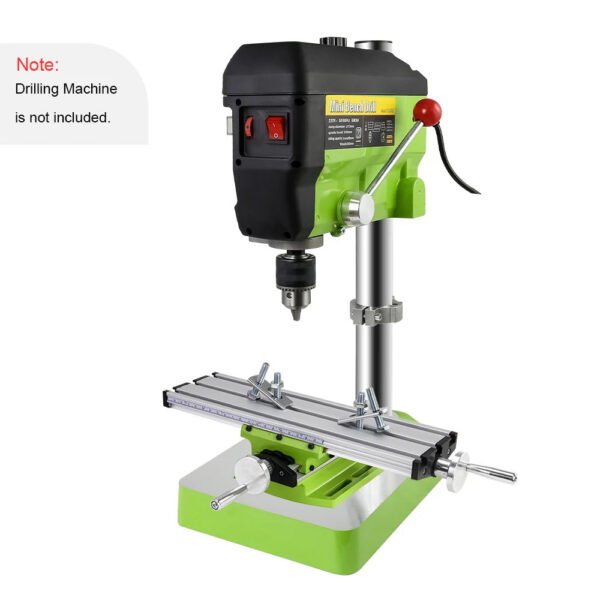

The table is suitable for Mini Drill and drill bracket series.
It can also apply to other suitable machine.

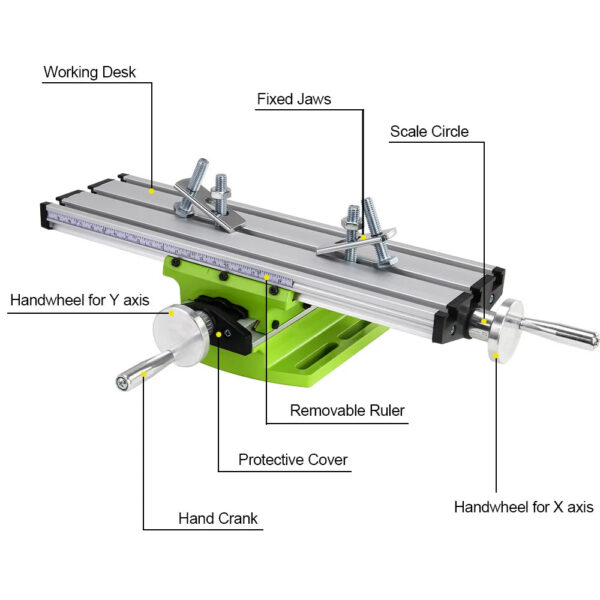

The work table is composed of several adjustable dovetail slotaluminum alloy composition, can guarantee the minimumspace and ensure the accuracy.
The working table with three T shaped groove, standard size is 15x8x6mm.
Scale is in front of the movable positioning.

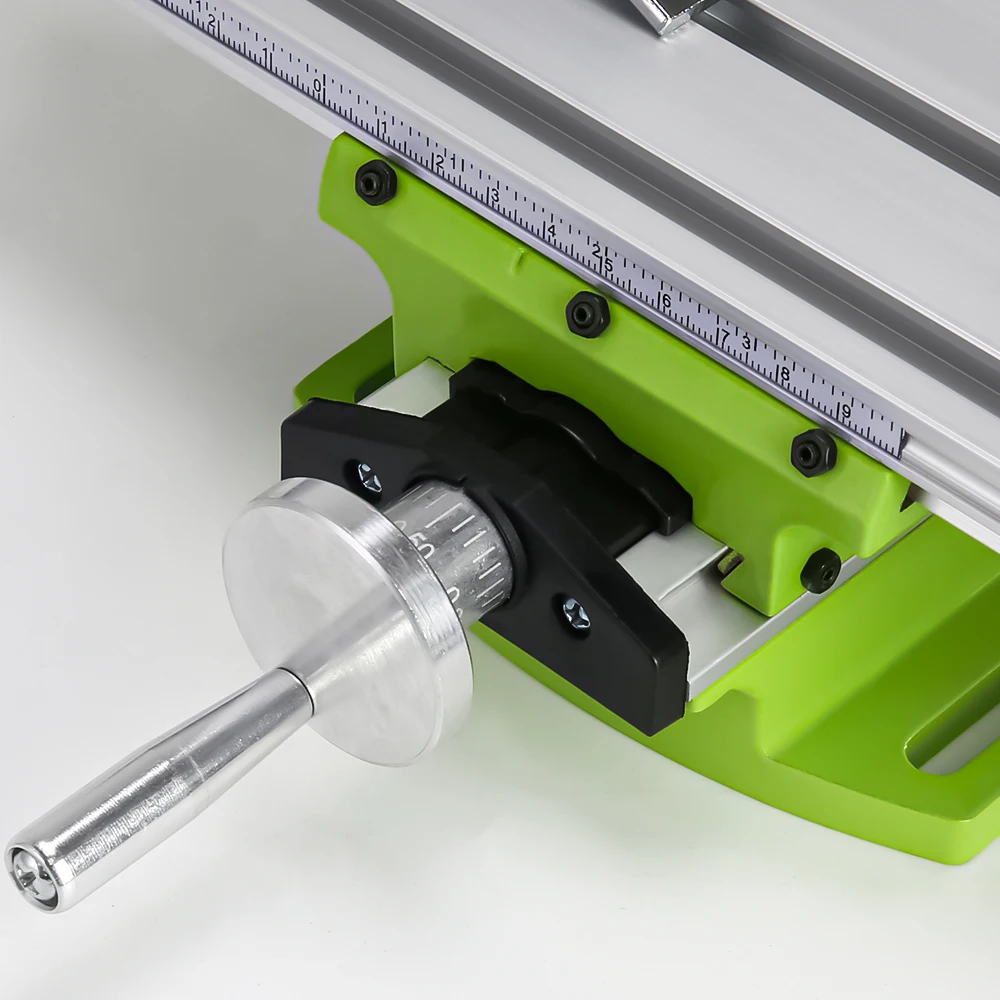

Zero adjustment handwheel rotates a circle of 1.25mm.
A lattice is equal to 0.05mm.
The X axis Y axis distance is 200mm, the stroke is 50mm.

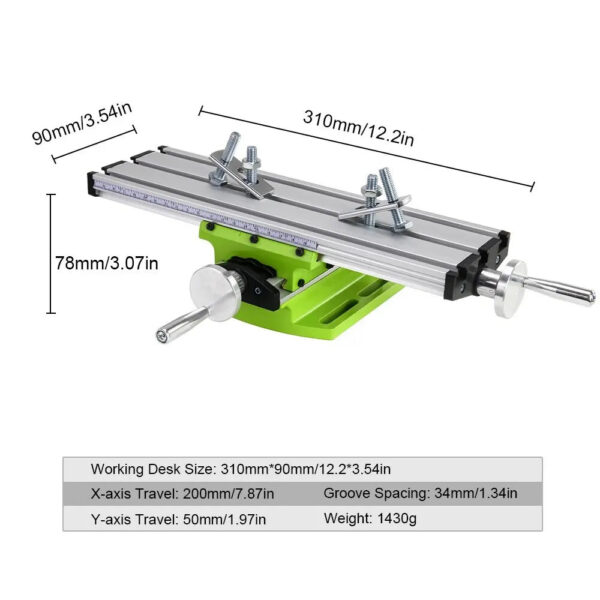

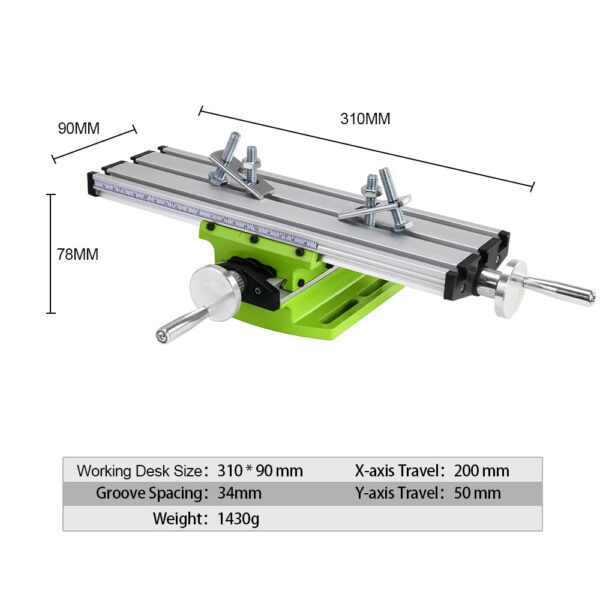

Working table size is 310x90mm and the height of 76mm, including two working clamp.

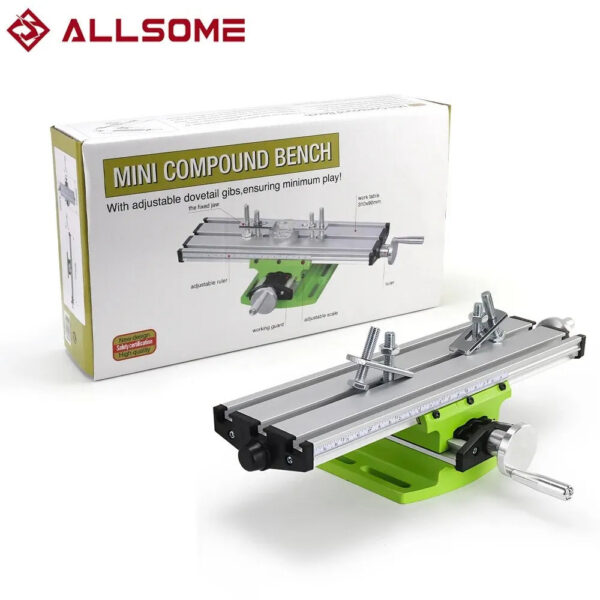

Package Included:

1 x Mini Multifunction Table
