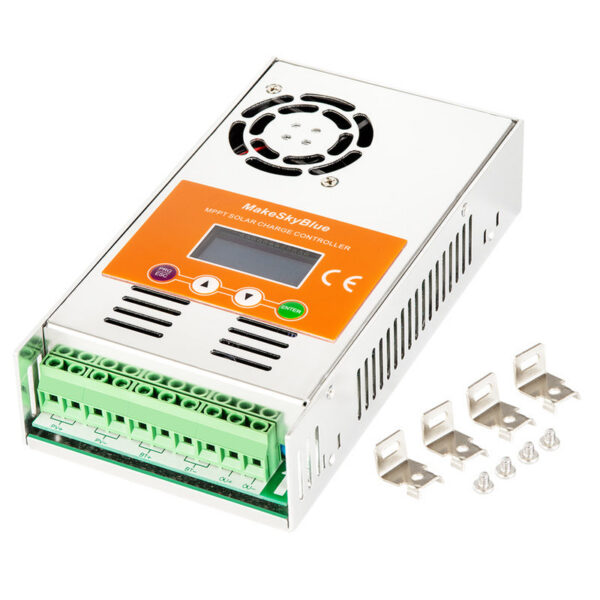

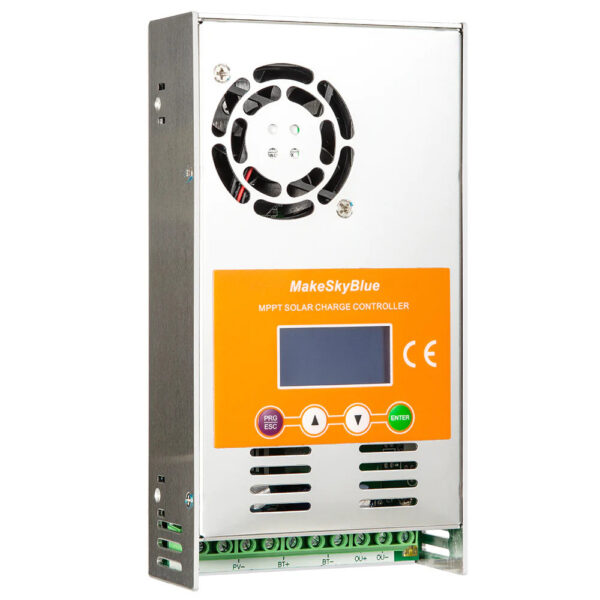

60A-V123 with Wifi Cloud Box MakeSkyBlue Solar Panel MPPT Charge Controller for 12V 24V 48V Lead-acid Battery

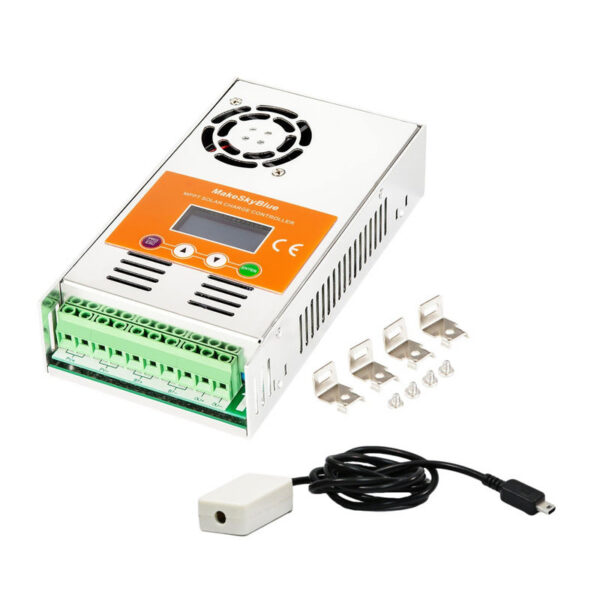

60A MPPT Solar Charge Controller with CloudBox
100% MPPT controller

Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/48V
Three-stage charging optimizes battery performance
Multi-function LCDs
Output limited current protection
Overcharge protection
Over-temperature protection
Easy to be mounted on the wall
No need for an extra device to be in parallel
No limited quantity to be in parallel
Suitable for battery types of sealed lead acid, vented, and Gel battery

Compatible with iOS and Android devices

Model No.
60A-V123

Charging Technology
MPPT / Maximum power point tracking

Charging Mode

3-stage：
Constant current(MPPT)
Constant voltage(Absorption voltage)
Floating charge

System Type
DC12V/24V/48V Recognition automatically

Automatic Select Voltage Range

12V system (DC9V-DC15V)
24V system (DC18V-DC29V)
48V system (DC40V~DC60V)

Soft Start Time
≤1S

Dynamic Response and Recovery Time
100us

Max Efficiency
≥98.2%

PV Utilization
≥99%

Self Consumption
≤1.2W

Input Specification

Voc Range of PV
( Make sure the Voc of PV meets the requirement as right.
Voc is 1.5 or 2 times than battery, then it’s the best efficiency. )

12V system (DC20V~DC80V)
24V system (DC37V~DC105V)
48V system (DC72V~DC160V)

Maximum PV Module Open Circuit Voltage
(Never over max PV Voc)

For 12V battery: 80V
For 24V battery: 105V
For 48V battery: 160V

The Maximum Nominal PV power

12V system (720W)
24V system (1440W)
48V system (2800W)

Output Specification

Selectable Battery Type

Vented/ Sealed / Gel / NiCd battery
(Defined voltage by user)
For a 12V battery, you could set the voltage from 12V-17V.
For a 24V battery, you could set the voltage from 24V-34V.
For a 48V battery, you could set the voltage from 48V-68V.

Absorption Charging Voltage
Refer to the manual

Floating Charging Voltage
Refer to the manual

Overcharging Protection Voltage

12V system (15V)
24V system (30V)
48V system (60V)

Rated Output Current
60A

Output Voltage Ripple-peak
100mV

Output Voltage Accuracy
≤±1%

Indicating

LCD
Refer to the manual

Protection Function

Temperature Protection
75 °C/ 167℉

Fan-on Temperature
>45 °C/ 113℉

Fan-off Temperature
<40 °C / 104℉ PV Reverse Polarity Protection Yes (When Voc<100V only) PV Over-voltage Protection Yes(When Voc>180V, the controller will be burnt.)

Battery Overcharge Current Protection
Yes

Battery Overcharge Voltage Protection
Yes

Battery Low Voltage Protection
Yes

Enclosure

Acoustic Noise
≤40dB

Components
Industrial grade

Size (cm)
21.5*11.5*5 cm/8.46*4.52*1.96 in

Net Weight(Kg)
1.3kg/2.86lb

Gross Weight(Kg)
1.4kg/3.08lb

Safety
EN 62109-1 EN 60730-1 EN IEC 61000-6-3  EN IEC 61000-6-1

Protection Category
IP21

Environmental Condition
Indoor

Operating Temperature
-20℃ ~ +55℃ / -4℉ ~ + 131℉

Storage Temperature
-40℃ ~ +75℃ / -40℉ ~ + 167℉

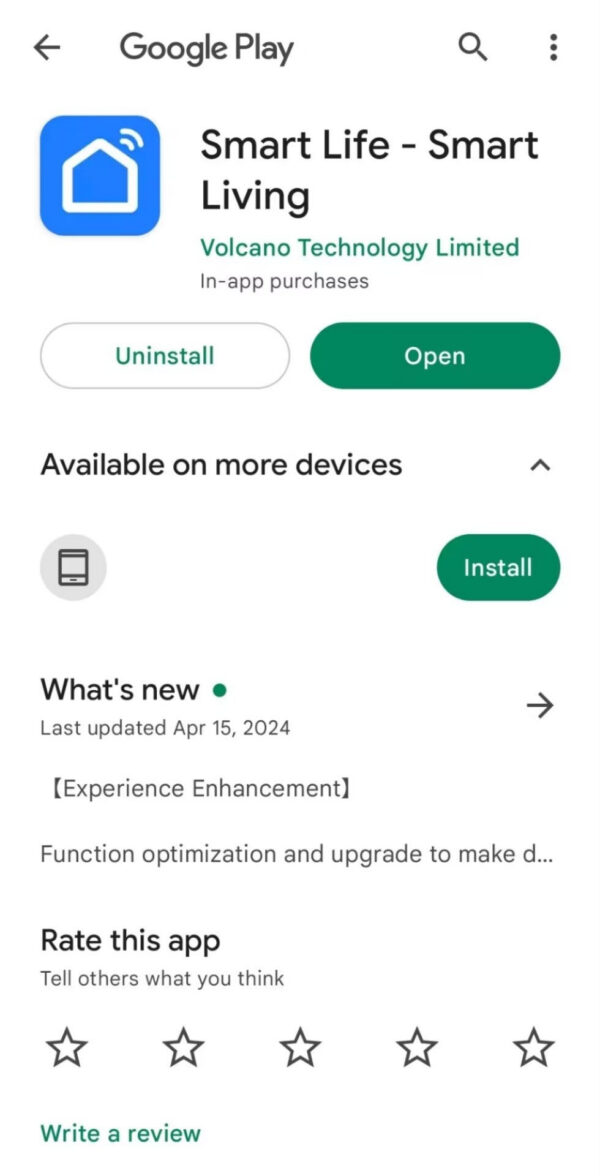

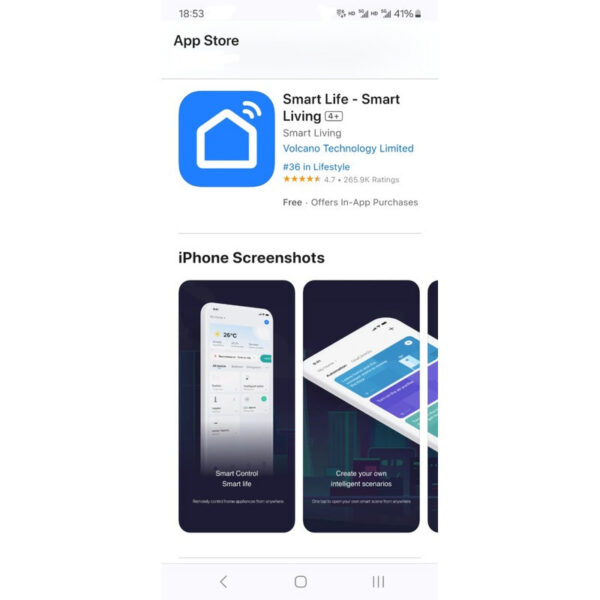

APP for IOS and Android
Note: The SOC function in the APP is for our own batteries and has not been developed yet.

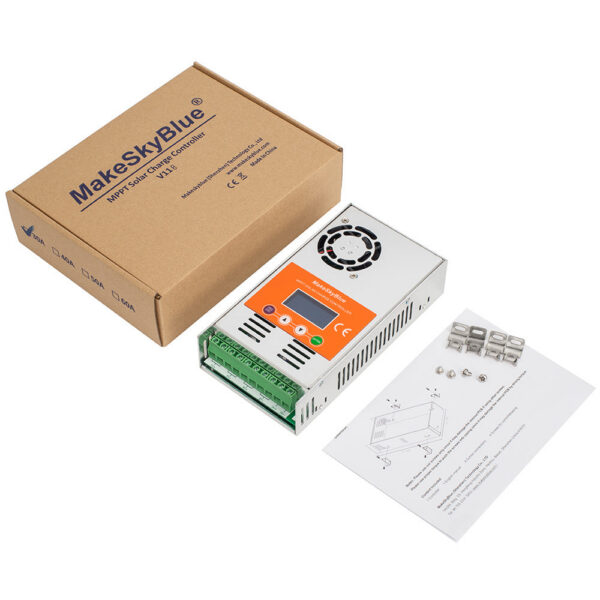

Content IncludedOne MPPT solar controllerOne CloudBoxA set brackets and screwsOne manualDuties
