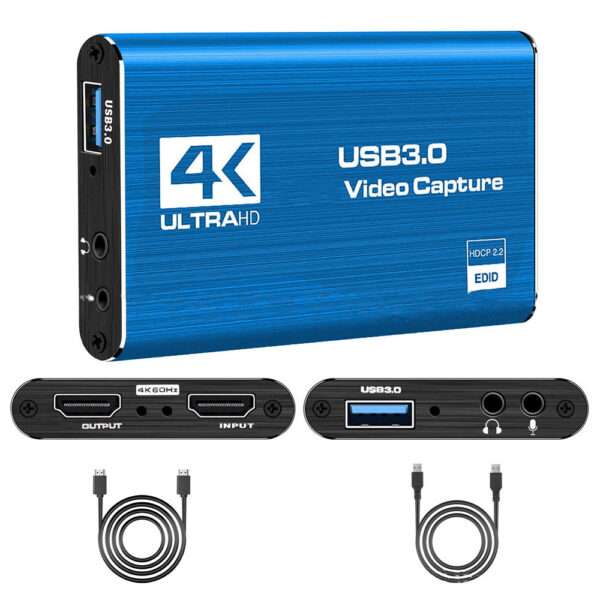

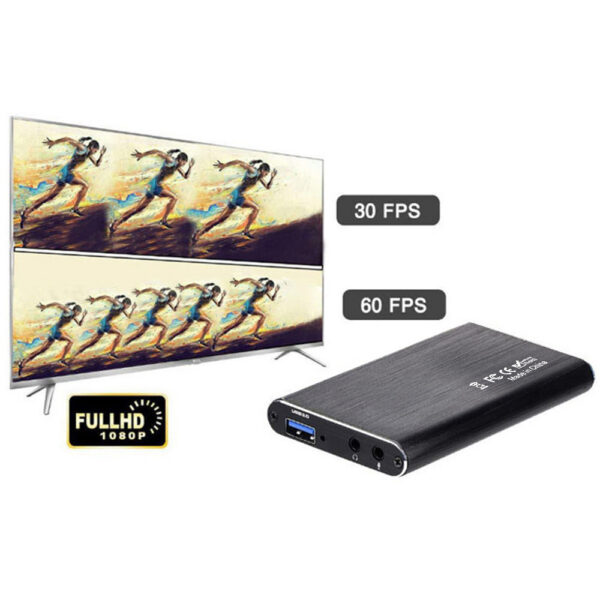

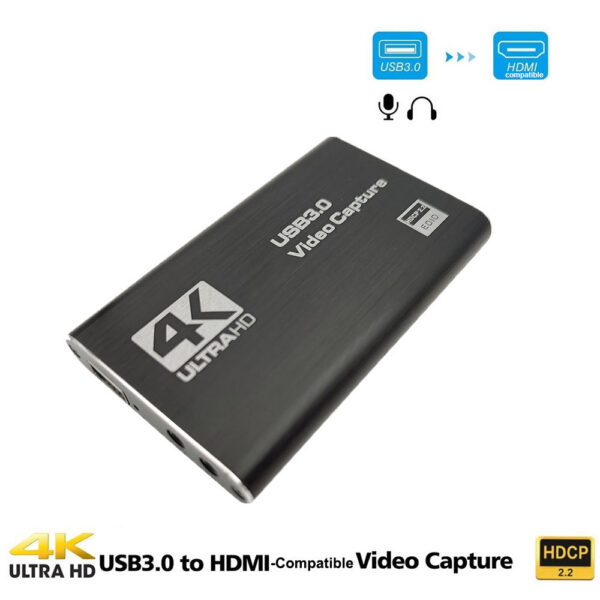

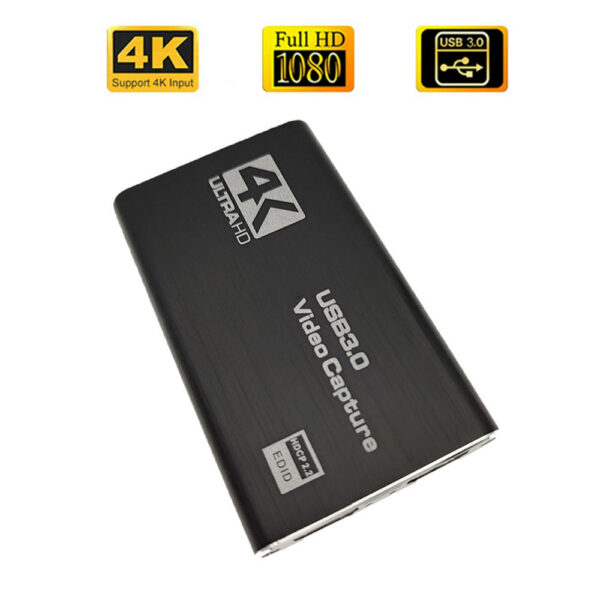

4K USB 3.0 Capture HDMI-compatible 1080P 60fps HD Video Recorder Grabber For Capturing Game Card Live

🎈

❀Features

1. It can capture single HD HDMI-compatible video signal;2. The recorded video signal can reach 1080p / 60Hz, HDMI-compatible input supports 4K / 30Hz;3. Support for MJPEG and YUY2;5. Some for win7 need to install the driver;6. Compatible for Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;9. Can automatically detect the input audio format and convert it to 48KHz PCM audio;10. 2 collection rods can be used on a PC;12. The picture quality is clearer, the RGB color range is 0 ~ 255, the delay is better;13. Support for all third-party player software compatible for UVC and UAC protocols;

❀System Requirements

Computer system requirements:For Windows® 10 / Windows 8.1 / Windows 7 (SP1);4 GB RAM (8 GB recommended)

❀Mobile phone system requirements

For Android phone (supported by newer phones);Only supports for USB2, not USB3. (The reason is that For android UVC driver does not support USB3);If it is a for USB Android phone, you need to force the pure USB2 cable into the USB2 mode to use.

❀Specifications

1. Input interface: 1 HDMI-compatible interface;2. Output interface: USB3.0, 300 ~ 350MB / s throughput;3. HDMI-compatible input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280×960, 1024×768, 800×600, 640×4804. HDMI-compatible sound input: LPCM sound signal;5. HDMI-compatible input format: compatible with HDMI-compatible 1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;6. Output format Resolutions: 640×480 / 720×480 / 720×576 / 800×600 / 1024×768 / 1280×720 /1280×960 / 1280×1024 / 1366×768 / 1360×768 / 1440×900 / 1400×900 / 1680×1050 / 1920x1080frame rate: 25 / 29.97 / 30/50 / 59.94 / 60 fps;8. Audio and video capture: it conforms to UVC (USB video class) and UAC (USB audio class) standards;9. Output color space: YUV, RGB;10. Support operating system: For Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS;11. Software compatibility:For Adobe Flash Media Live Encoder (For Windows, OS X);For Real Producer Plus (Windows); VLC (For Windows, OS X, Linux);For QuickTime Broadcaster (OS X); QuickTime Player (OS X), OBS, PotPlayer and etc.12. Power consumption:=2.5W;13. Working temperature: 0-70 degrees Celsius;14. Storage temperature: -20-120 degrees Celsius;15. Storage humidity: 5% -90%;

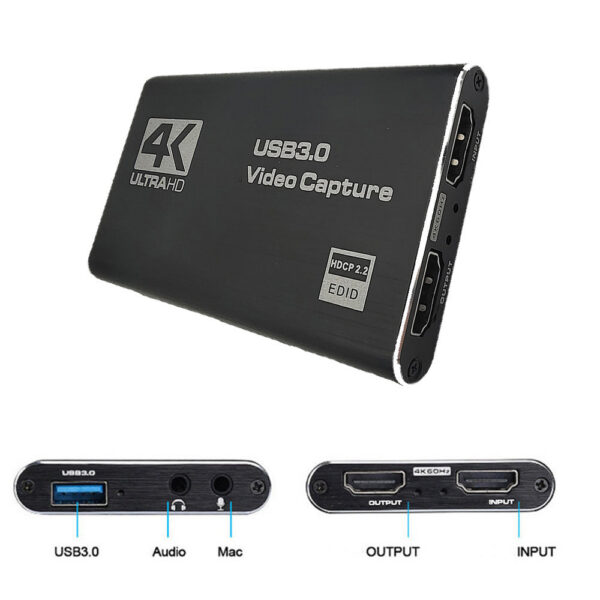

❀Interface Description

1. Signal indicator: When the device captures video normally, the indicator lights up.2. Power indicator: When the device is connected to the USB port of the computer, this indicator lights.3. HDMI-compatible input: This slot is where the HDMI-compatible output source such for camera, camcorder, game box, IPTV box, etc. is connected.

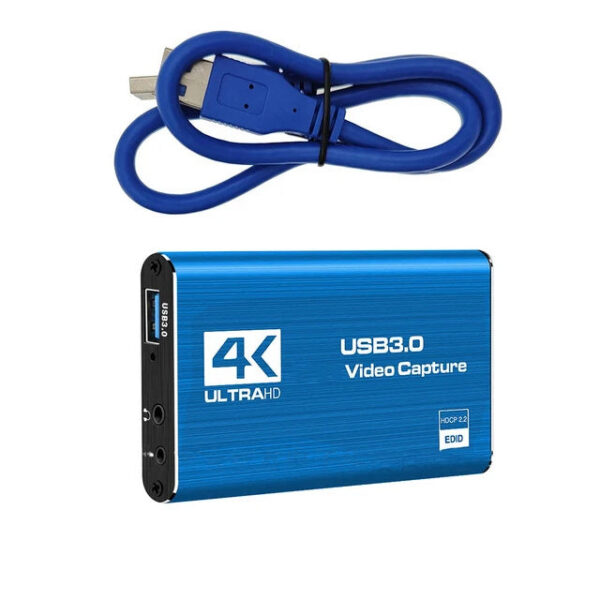

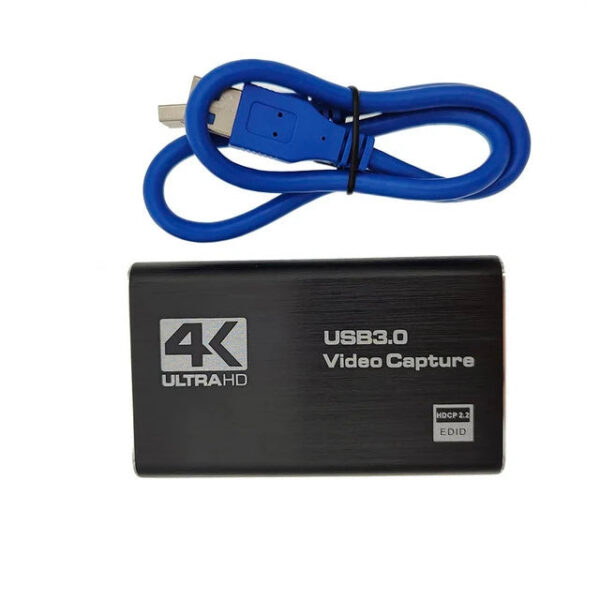

Including packaging

Video capture card1 * USB cableAttention:1.Please allow 0-1cm error due to manual measurement. please make sure you do not mind before you buy.2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
