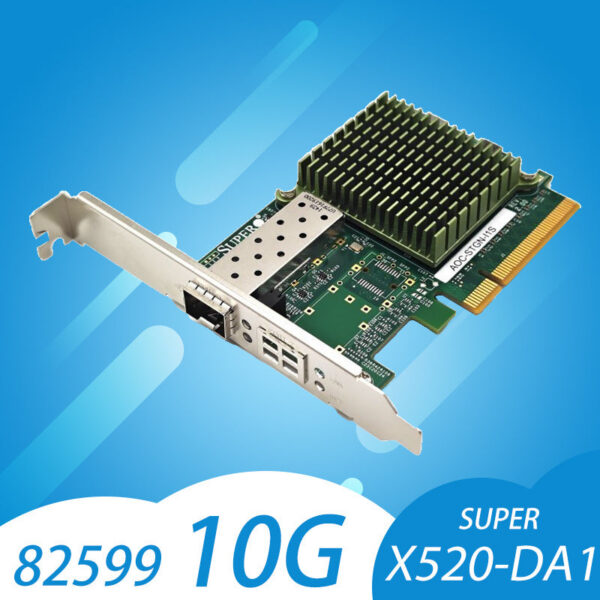

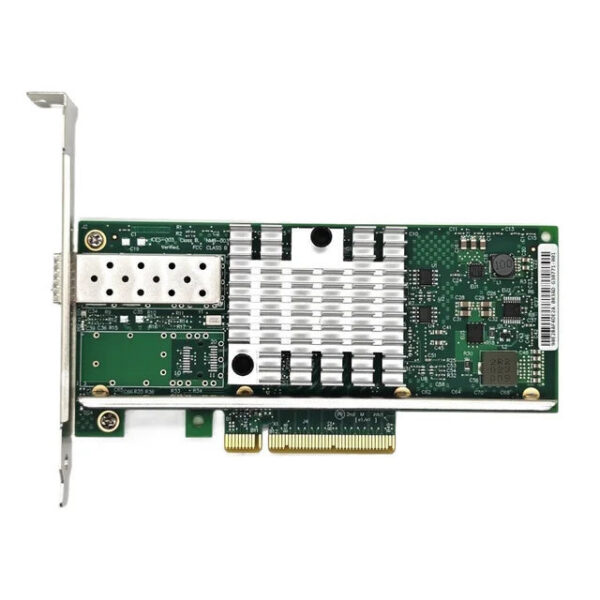

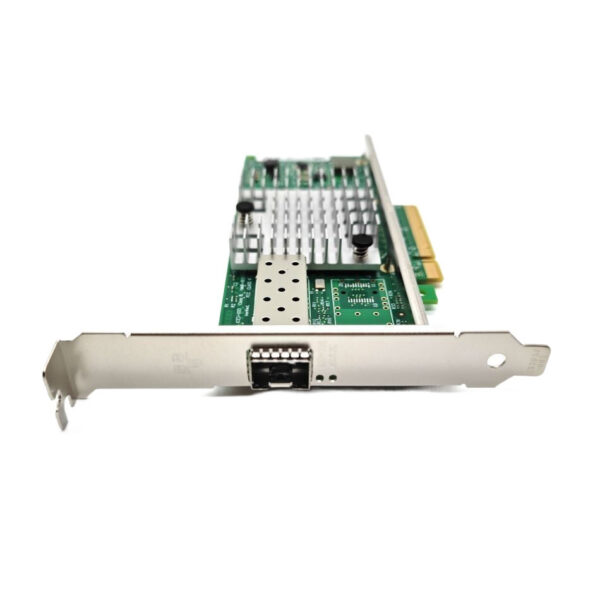

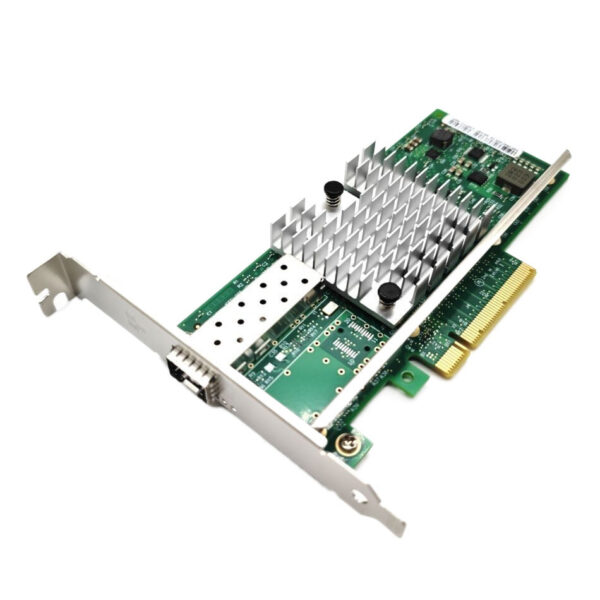

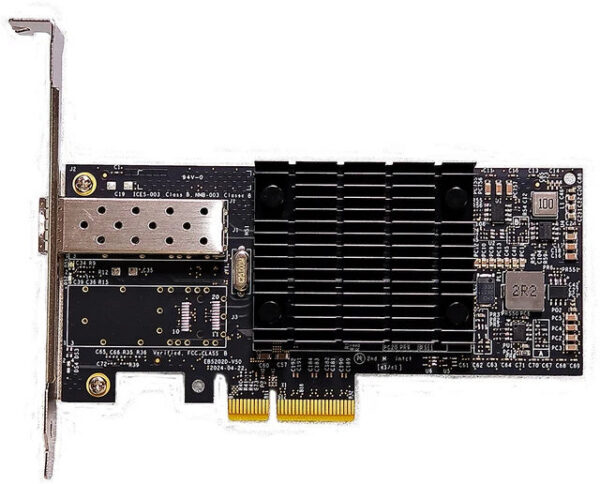

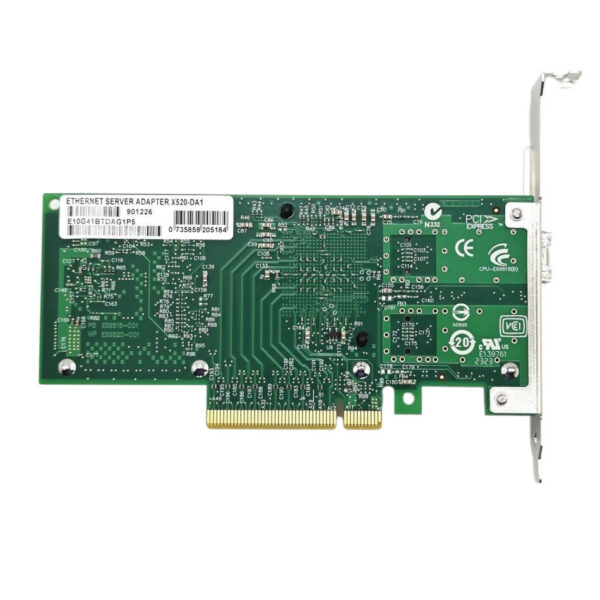

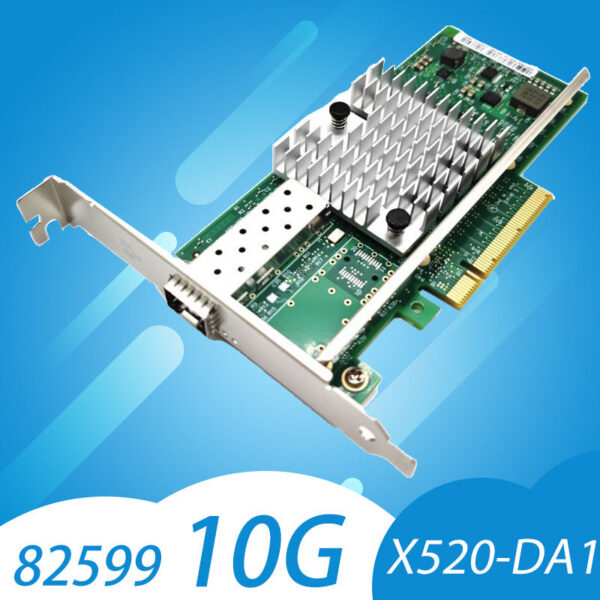

10Gb Ethernet Network Adapter Intel 82599EN X520-DA1 1xSFP+ Port PCI-E x8,x16 NIC Card Support Windows Server/7/8/10/VMware

Data Rate
10 Gb/2.5Gb/1Gb/s
10 Gb/2.5Gb/1Gb/s
10 Gb/1 Gb/100 Mb/s
10 Gb/1 Gb/100 Mb/s
10 Gb/1 Gb/100 Mb/s
10 Gb/1 Gb/100 Mb/s

Port
Single RJ45
Dual RJ45
Single RJ45
Dual RJ45
Single SFP+
Dual SFP+

PCI-E Lane
X4
X4
X8
X8
X8
X8

Function

Standard
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad
IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ad

Suppor operating system
Windows 7/8/10/Visa, Windows Server 2008/2012/2016/2019, Linux, FreeBSD* 9 and FreeBSD* 10, UEFI* 2.1, UEFI* 2.3, VMware ESXi 5.1 (Limited Functionality), VMware ESXi 5.5.
Windows 7/8/10/Visa, Windows Server 2008/2012/2016/2019, Linux, FreeBSD* 9 and FreeBSD* 10, UEFI* 2.1, UEFI* 2.3, VMware ESXi 5.1 (Limited Functionality), VMware ESXi 5.5.
Windows 7/8/10/Visa, Windows Server 2003/ 2008/ 2012/2016/2019, Linux, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware ESX/Esxi 6/7, SLSE 11/12,etc.
Windows 7/8/10/Visa, Windows Server 2003/ 2008/ 2012/2016/2019, Linux, Centos/RHEL 6/7/8, Ubuntu 16/18/19/20, Debian 9/10/11, FreeBSD 10/11/12, Vmware ESX/Esxi 6/7, SLSE 11/12,etc.
Windows Server 2003/ 2008/ 2012, Windows7/ 8/ Visa, Linux, VMware ESX.
Windows Server 2003/ 2008/ 2012, Windows7/ 8/ Visa, Linux, VMware ESX.

Un-suppor operating system
Mac OS, Bypass Mode
Mac OS, Bypass Mode
Mac OS, Bypass Mode
Mac OS, Bypass Mode
QNAP QSA-308-Series Switch; Mac OS
QNAP QSA-308-Series Switch; Mac OS

10G Multimode SFP+ Module
10G Single mode SFP+ Module
10G SFP+ to RJ45 Module
10G SFP+ DAC Cable 1m
10G SFP+ AOC Cable 3m
10G SFP+ AOC Cable 5m

Data Rate
10 Gb/s
10G
10 Gb/s
10 Gb/s
10 Gb/s
10 Gb/s

Reach
300m
10km
30m
0.5m
3m
5m

Fiber Type
MMF
SMF
–
Passive Copper Cable
AOC Copper Cable
AOC Copper Cable

Product DescriptionFor 10Gbps PCI-E X8 Single Port SFP+ Ethernet Server Adapter NIC X520-DA1 /E10G41BTDAAbout Description:Product Code: E10G41BTDA / X520-DA1Ports: SFP+ * 1Bus Type: PCI-E X8Chipset: for JL82599ENTransmission Rate: 10GNetwork Type: 10-Gigabit Fiber EthernetTransmission Distance: Dual-mode: 62.5um 220m, 50um 550m.Boot Rom: Support BOOT ROMNetwork Standard: IEEE 802.1p,IEEE 802.1Q, IEEE 802.2, IEEE 802.3ac, IEEE 802.3az, IEEE 802.3x,IEEE 802.3z, IEEE 802.3adManagement Features: PXE remote boot, ISCSI boot, VLAN filtering, FCOE, ROS, ESXISupport system:Windows XP/VISTA/7/8/10(3264bit), SCO UnixWare* 7.x, Open Unix* 8.0, Novell ODI*, Novell Netware*,SUSE Linux Enterprise Server* 9.0, Red Hat Enterprise Linux* 4.0, Linux*, FreeBSD*,



10 Gigabit Faster Transmission
Transmission rate up to 10 Gigabit

Supports Multiple Operating Systems
Widely Compatible with Windows Server 2003/ 2008/ 2012, Windows7/ 8/10 Visa, Linux, VMware ESX, etc.
Does not support:QNAP QSA-308-Series Switch; Mac OS, Bypass Mode

Dual SFP+ Ports
Dual SFP+ Ports widely apply to 10G SFP+ Transceiver,10G SFP+ DAC,10G SFP+ A0C. They are flexible and scalacble to 10G Network which meet the demands of today’s data center environments.

PCI-E X8 Lane
PCI Express 2.0 (5.0 G T/s) X8 Lane,and also suitable for X16 Lane.

With a driver CD
Equipped with a Driver CD which help you quickly and easily set up the netword card.
